| VBSST40 | DN40CF | 67 | 48 | No Viewport | 40 | 31 |
This product is already in your quote request list.
|
| VBSST40+ |

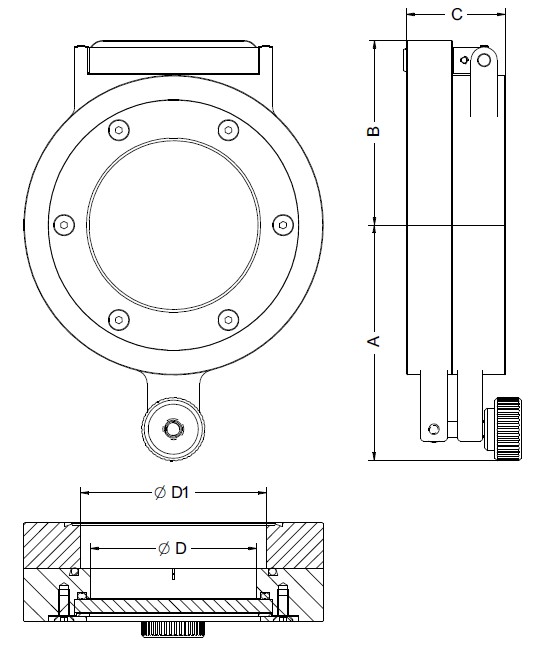

Flange Size: DN40CF Dim A ( mm): 67 Dim B (mm): 48 Viewport diameter ØD (mm): No Viewport Access diameter ØD1(mm): 40 Dim C (mm): 31
This product is already in your quote request list.
|
| VBSST40S | DN40CF | 67 | 48 | 40 | 40 | 31 |
This product is already in your quote request list.
|
| VBSST40S+ |
Flange Size: DN40CF Dim A ( mm): 67 Dim B (mm): 48 Viewport diameter ØD (mm): 40 Access diameter ØD1(mm): 40 Dim C (mm): 31
This product is already in your quote request list.
|
| VBSST63 | DN63CF | 89 | 70 | No Viewport | 70 | 38 |
This product is already in your quote request list.
|
| VBSST63+ |
Flange Size: DN63CF Dim A ( mm): 89 Dim B (mm): 70 Viewport diameter ØD (mm): No Viewport Access diameter ØD1(mm): 70 Dim C (mm): 38
This product is already in your quote request list.
|
| VBSST63S | DN63CF | 89 | 70 | 70 | 70 | 38 |
This product is already in your quote request list.
|
| VBSST63S+ |
Flange Size: DN63CF Dim A ( mm): 89 Dim B (mm): 70 Viewport diameter ØD (mm): 70 Access diameter ØD1(mm): 70 Dim C (mm): 38
This product is already in your quote request list.
|
| VBSST100 | DN100CF | 109 | 88 | No Viewport | 102 | 38 |
This product is already in your quote request list.
|
| VBSST100+ |
Flange Size: DN100CF Dim A ( mm): 109 Dim B (mm): 88 Viewport diameter ØD (mm): No Viewport Access diameter ØD1(mm): 102 Dim C (mm): 38
This product is already in your quote request list.
|
| VBSST100S | DN100CF | 109 | 88 | 102 | 102 | 38 |
This product is already in your quote request list.
|
| VBSST100S+ |
Flange Size: DN100CF Dim A ( mm): 109 Dim B (mm): 88 Viewport diameter ØD (mm): 102 Access diameter ØD1(mm): 102 Dim C (mm): 38
This product is already in your quote request list.
|
| VBSST160 | DN160CF | 135 | 116 | No Viewport | 150 | 45 |
This product is already in your quote request list.
|
| VBSST160+ |
Flange Size: DN160CF Dim A ( mm): 135 Dim B (mm): 116 Viewport diameter ØD (mm): No Viewport Access diameter ØD1(mm): 150 Dim C (mm): 45
This product is already in your quote request list.
|
| VBSST160S | DN160CF | 135 | 116 | 150 | 150 | 45 |
This product is already in your quote request list.
|
| VBSST160S+ |
Flange Size: DN160CF Dim A ( mm): 135 Dim B (mm): 116 Viewport diameter ØD (mm): 150 Access diameter ØD1(mm): 150 Dim C (mm): 45
This product is already in your quote request list.
|
| VBSST200 | DN200CF | 159 | 143 | No Viewport | 150 | 45 |
This product is already in your quote request list.
|
| VBSST200+ |
Flange Size: DN200CF Dim A ( mm): 159 Dim B (mm): 143 Viewport diameter ØD (mm): No Viewport Access diameter ØD1(mm): 150 Dim C (mm): 45
This product is already in your quote request list.
|
| VBSST200S | DN200CF | 159 | 143 | 190 | 198 | 47 |
This product is already in your quote request list.
|
| VBSST200S+ |
Flange Size: DN200CF Dim A ( mm): 159 Dim B (mm): 143 Viewport diameter ØD (mm): 190 Access diameter ØD1(mm): 198 Dim C (mm): 47
This product is already in your quote request list.
|
| VBSST250 | DN250CF | 185 | 167 | No Viewport | 198 | 49 |
This product is already in your quote request list.
|
| VBSST250+ |
Flange Size: DN250CF Dim A ( mm): 185 Dim B (mm): 167 Viewport diameter ØD (mm): No Viewport Access diameter ØD1(mm): 198 Dim C (mm): 49
This product is already in your quote request list.
|
| VBSST250S | DN250CF | 185 | 167 | 250 | 250 | 49 |
This product is already in your quote request list.
|
| VBSST250S+ |
Flange Size: DN250CF Dim A ( mm): 185 Dim B (mm): 167 Viewport diameter ØD (mm): 250 Access diameter ØD1(mm): 250 Dim C (mm): 49
This product is already in your quote request list.
|
| VBSST300 | DN300CF | 241 | 215 | No Viewport | 290 | 56 |
This product is already in your quote request list.
|
| VBSST300+ |
Flange Size: DN300CF Dim A ( mm): 241 Dim B (mm): 215 Viewport diameter ØD (mm): No Viewport Access diameter ØD1(mm): 290 Dim C (mm): 56
This product is already in your quote request list.
|
| VBSST300S | DN300CF | 241 | 215 | 290 | 290 | 56 |
This product is already in your quote request list.
|
| VBSST300S+ |
Flange Size: DN300CF Dim A ( mm): 241 Dim B (mm): 215 Viewport diameter ØD (mm): 290 Access diameter ØD1(mm): 290 Dim C (mm): 56
This product is already in your quote request list.
|
