Name: VBJUMEM-40 Port Aligner
Brand: VAb
SKU: VABJUMEM-40
Availability: BackOrder

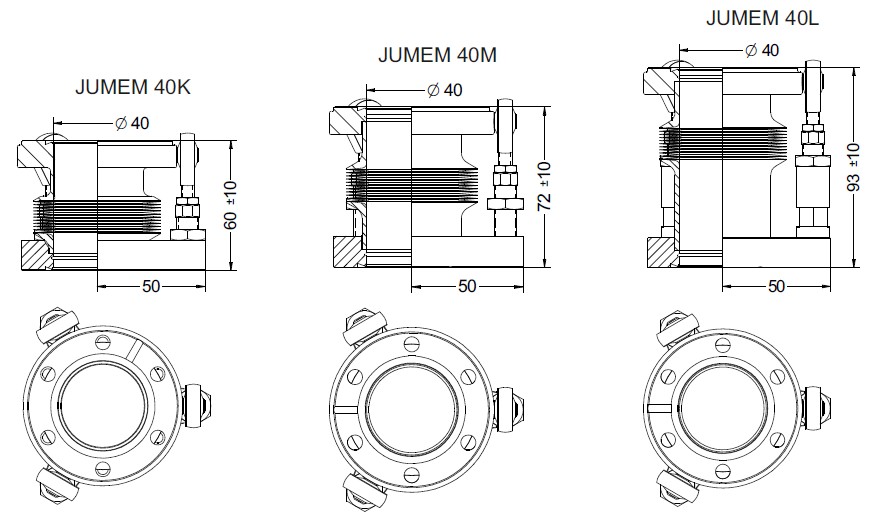

Part No.	Length (mm)	External radius (mm)	Inner diameter (mm)	Bolt hole type base flange	Bolt hole type top flange	Flange material
VBJUMEM-40K	60±10	50	40	Threaded	Through	304L	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40K+
Length (mm): 60±10 External radius (mm): 50 Inner diameter (mm): 40 Bolt hole type base flange: Threaded Bolt hole type top flange: Through Flange material: 304L Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40K-29	60±10	50	40	Threaded	Through	316LN	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40K-29+
Length (mm): 60±10 External radius (mm): 50 Inner diameter (mm): 40 Bolt hole type base flange: Threaded Bolt hole type top flange: Through Flange material: 316LN Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40M	72±10	50	40	Through	Through	304L	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40M+
Length (mm): 72±10 External radius (mm): 50 Inner diameter (mm): 40 Bolt hole type base flange: Through Bolt hole type top flange: Through Flange material: 304L Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40M-29	72±10	50	40	Through	Through	316LN	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40M-29+
Length (mm): 72±10 External radius (mm): 50 Inner diameter (mm): 40 Bolt hole type base flange: Through Bolt hole type top flange: Through Flange material: 316LN Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40L	93±10	50	40	Through	Through	304L	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40L+
Length (mm): 93±10 External radius (mm): 50 Inner diameter (mm): 40 Bolt hole type base flange: Through Bolt hole type top flange: Through Flange material: 304L Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40L-29	93±10	50	40	Through	Through	316LN	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-40L-29+
Length (mm): 93±10 External radius (mm): 50 Inner diameter (mm): 40 Bolt hole type base flange: Through Bolt hole type top flange: Through Flange material: 316LN Add to quote This product is already in your quote request list. Browse the list

VBJUMEM-40 Port Aligner

Key Features

VBJUMEM-40K

VBJUMEM-40K-29

VBJUMEM-40M

VBJUMEM-40M-29

VBJUMEM-40L

VBJUMEM-40L-29
