VBLD Series Pneumatic Linear feedthroughs

Name: VBLD Series Pneumatic Linear feedthroughs
Brand: VAb
SKU: VBLD-P
Availability: BackOrder

A robust pneumatic, open-ended linear feedthrough available in two flange sizes DN40CF and DN63CF. Compared to the stepper motor driven version of this product, it is designed for moving between discrete positions only, rather than for continuous motion. The pneumatic actuator can be specified as a 2 or 3 position version.

The LD series is also available in a manual handwheel or stepper motor version (see separate product pages).

Key Features

DN40CF and DN63CF flange sizes only
Travel options from 50-300mm depending on flange size
Pneumatic drive options for 2 positions or 3 positions
Two adjustable end-stops to limit the travel within its range
Bakeout temperature 230ºC without pneumatic drive
Maximum load for Z axis 10kg for DN40CF, 15kg for DN63CF
Flanges 316LN, tube and bellows 316L stainless steel
Pressure range 1bar – 10^-11mbar
All models include a movement scale for easy identification of the current position
Available options not listed in the table below (please ask):
- Limit switches to provide positional feedback when the manipulator reaches the end of its travel (bakeable and not bakeable versions available VBESBL or VBESBLH respectively)
- DN40CF version top flange with thru holes adds 25mm to flange to flange distance
- Magnetic permeability <1.01 (-LM at end of part number)
- Straddled or in-line flange bolt hole orientation
- Support tube for rotary feedthrough in base flange

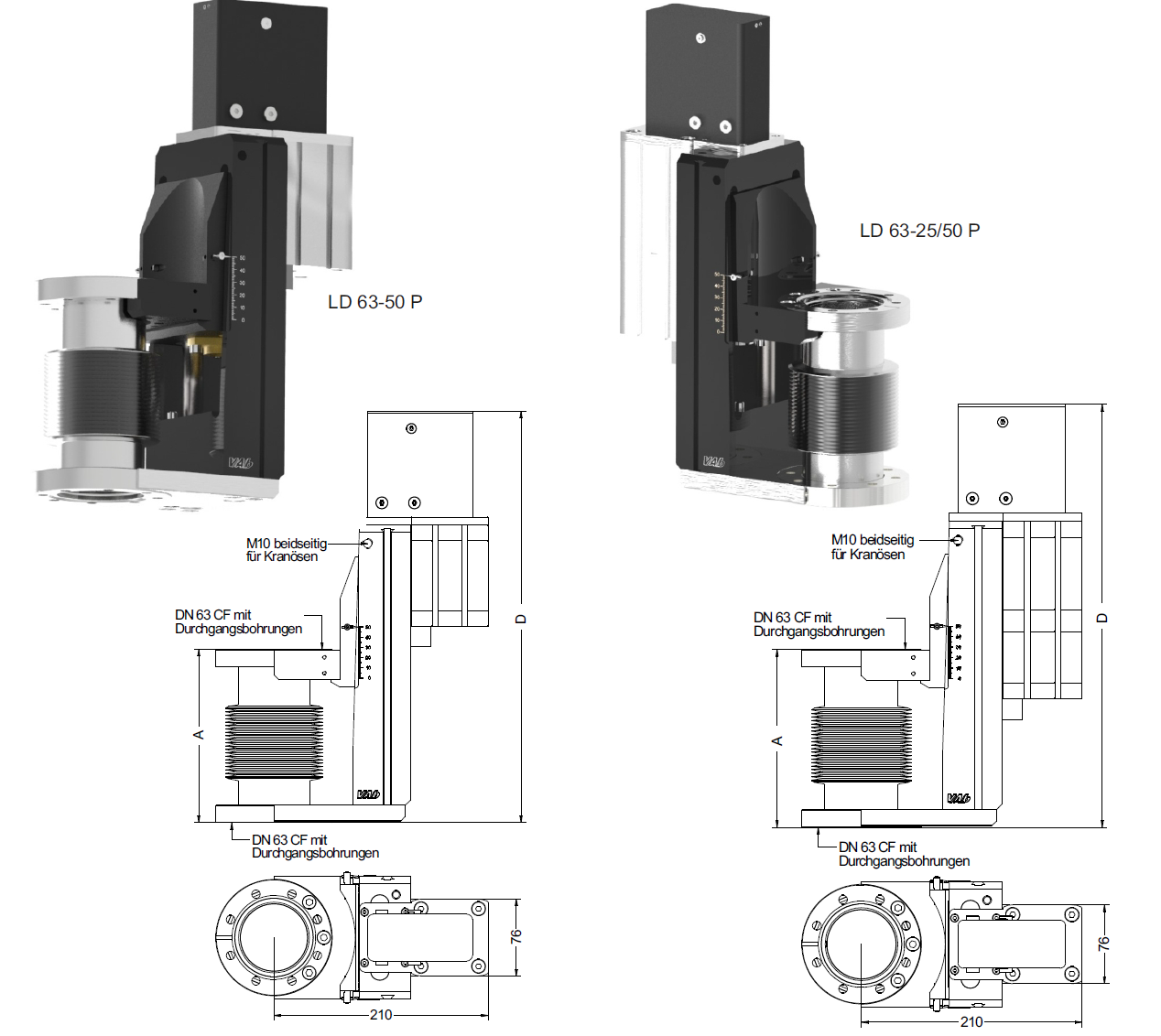

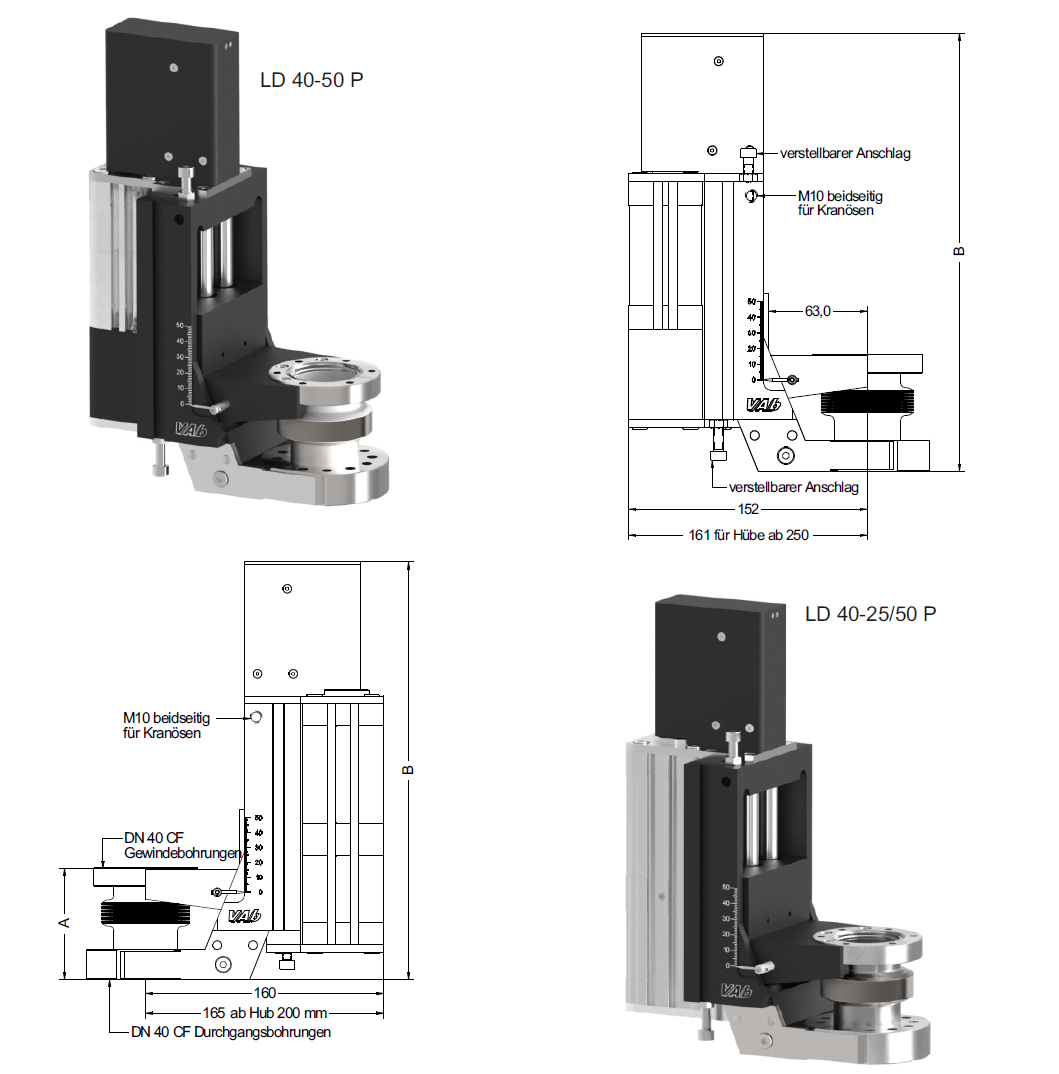

VBLD Series Pneumatic Linear feedthroughs

VBLD Series Pneumatic Linear feedthroughs - Image 2

VBLD Series Pneumatic Linear feedthroughs - Image 3

Part No.	Flange size	Travel (mm)	No. of positions	Base flange hole type	Top flange hole type	Bellows inner diameter (mm)	Flange to flange distance (mm)	Length B (mm) - see drawing	Length D (mm) - see drawing	Weight (kg)
VBLD40-50P	DN40CF	50	2	Through	Threaded	39	75-125	280		4.7	Add to quote This product is already in your quote request list. Browse the list
VBLD40-50P+
Flange size: DN40CF Travel (mm): 50 No. of positions: 2 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 75-125 Length B (mm) - see drawing: 280 Length D (mm) - see drawing: Weight (kg): 4.7 Add to quote This product is already in your quote request list. Browse the list
VBLD40-75P	DN40CF	75	2	Through	Threaded	39	82.5-157.5	337		5.3	Add to quote This product is already in your quote request list. Browse the list
VBLD40-75P+
Flange size: DN40CF Travel (mm): 75 No. of positions: 2 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 82.5-157.5 Length B (mm) - see drawing: 337 Length D (mm) - see drawing: Weight (kg): 5.3 Add to quote This product is already in your quote request list. Browse the list
VBLD40-100P	DN40CF	100	2	Through	Threaded	39	90-190	395		5.8	Add to quote This product is already in your quote request list. Browse the list
VBLD40-100P+
Flange size: DN40CF Travel (mm): 100 No. of positions: 2 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 90-190 Length B (mm) - see drawing: 395 Length D (mm) - see drawing: Weight (kg): 5.8 Add to quote This product is already in your quote request list. Browse the list
VBLD40-150P	DN40CF	150	2	Through	Threaded	39	105-255	510		6.9	Add to quote This product is already in your quote request list. Browse the list
VBLD40-150P+
Flange size: DN40CF Travel (mm): 150 No. of positions: 2 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 105-255 Length B (mm) - see drawing: 510 Length D (mm) - see drawing: Weight (kg): 6.9 Add to quote This product is already in your quote request list. Browse the list
VBLD40-200P	DN40CF	200	2	Through	Threaded	39	120-320	625		8.1	Add to quote This product is already in your quote request list. Browse the list
VBLD40-200P+
Flange size: DN40CF Travel (mm): 200 No. of positions: 2 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 120-320 Length B (mm) - see drawing: 625 Length D (mm) - see drawing: Weight (kg): 8.1 Add to quote This product is already in your quote request list. Browse the list
VBLD40-250P	DN40CF	250	2	Through	Threaded	39	135-385	740		10.2	Add to quote This product is already in your quote request list. Browse the list
VBLD40-250P+
Flange size: DN40CF Travel (mm): 250 No. of positions: 2 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 135-385 Length B (mm) - see drawing: 740 Length D (mm) - see drawing: Weight (kg): 10.2 Add to quote This product is already in your quote request list. Browse the list
VBLD40-25/50P	DN40CF	50	3	Through	Threaded	39	75-125	280		4.7	Add to quote This product is already in your quote request list. Browse the list
VBLD40-25/50P+
Flange size: DN40CF Travel (mm): 50 No. of positions: 3 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 75-125 Length B (mm) - see drawing: 280 Length D (mm) - see drawing: Weight (kg): 4.7 Add to quote This product is already in your quote request list. Browse the list
VBLD40-37,5/75P	DN40CF	75	3	Through	Threaded	39	82.5-157.5	337		5.3	Add to quote This product is already in your quote request list. Browse the list
VBLD40-37,5/75P+
Flange size: DN40CF Travel (mm): 75 No. of positions: 3 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 82.5-157.5 Length B (mm) - see drawing: 337 Length D (mm) - see drawing: Weight (kg): 5.3 Add to quote This product is already in your quote request list. Browse the list
VBLD40-50/100P	DN40CF	100	3	Through	Threaded	39	90-190	395		5.8	Add to quote This product is already in your quote request list. Browse the list
VBLD40-50/100P+
Flange size: DN40CF Travel (mm): 100 No. of positions: 3 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 90-190 Length B (mm) - see drawing: 395 Length D (mm) - see drawing: Weight (kg): 5.8 Add to quote This product is already in your quote request list. Browse the list
VBLD40-75/150P	DN40CF	150	3	Through	Threaded	39	105-255	510		6.9	Add to quote This product is already in your quote request list. Browse the list
VBLD40-75/150P+
Flange size: DN40CF Travel (mm): 150 No. of positions: 3 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 105-255 Length B (mm) - see drawing: 510 Length D (mm) - see drawing: Weight (kg): 6.9 Add to quote This product is already in your quote request list. Browse the list
VBLD40-100/200P	DN40CF	200	3	Through	Threaded	39	120-320	625		8.1	Add to quote This product is already in your quote request list. Browse the list
VBLD40-100/200P+
Flange size: DN40CF Travel (mm): 200 No. of positions: 3 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 120-320 Length B (mm) - see drawing: 625 Length D (mm) - see drawing: Weight (kg): 8.1 Add to quote This product is already in your quote request list. Browse the list
VBLD40-125/250P	DN40CF	250	3	Through	Threaded	39	135-385	740		10.2	Add to quote This product is already in your quote request list. Browse the list
VBLD40-125/250P+
Flange size: DN40CF Travel (mm): 250 No. of positions: 3 Base flange hole type: Through Top flange hole type: Threaded Bellows inner diameter (mm): 39 Flange to flange distance (mm): 135-385 Length B (mm) - see drawing: 740 Length D (mm) - see drawing: Weight (kg): 10.2 Add to quote This product is already in your quote request list. Browse the list
VBLD63-50P	DN63CF	50	2	Through	Through	70.5	120-170		404	11.5	Add to quote This product is already in your quote request list. Browse the list
VBLD63-50P+
Flange size: DN63CF Travel (mm): 50 No. of positions: 2 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 120-170 Length B (mm) - see drawing: Length D (mm) - see drawing: 404 Weight (kg): 11.5 Add to quote This product is already in your quote request list. Browse the list
VBLD63-100P	DN63CF	100	2	Through	Through	70.5	120-220		504	12.2	Add to quote This product is already in your quote request list. Browse the list
VBLD63-100P+
Flange size: DN63CF Travel (mm): 100 No. of positions: 2 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 120-220 Length B (mm) - see drawing: Length D (mm) - see drawing: 504 Weight (kg): 12.2 Add to quote This product is already in your quote request list. Browse the list
VBLD63-150P	DN63CF	150	2	Through	Through	70.5	130-280		614	13.5	Add to quote This product is already in your quote request list. Browse the list
VBLD63-150P+
Flange size: DN63CF Travel (mm): 150 No. of positions: 2 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 130-280 Length B (mm) - see drawing: Length D (mm) - see drawing: 614 Weight (kg): 13.5 Add to quote This product is already in your quote request list. Browse the list
VBLD63-200P	DN63CF	200	2	Through	Through	70.5	140-340		724	14.6	Add to quote This product is already in your quote request list. Browse the list
VBLD63-200P+
Flange size: DN63CF Travel (mm): 200 No. of positions: 2 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 140-340 Length B (mm) - see drawing: Length D (mm) - see drawing: 724 Weight (kg): 14.6 Add to quote This product is already in your quote request list. Browse the list
VBLD63-250P	DN63CF	250	2	Through	Through	70.5	150-400		834	15.7	Add to quote This product is already in your quote request list. Browse the list
VBLD63-250P+
Flange size: DN63CF Travel (mm): 250 No. of positions: 2 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 150-400 Length B (mm) - see drawing: Length D (mm) - see drawing: 834 Weight (kg): 15.7 Add to quote This product is already in your quote request list. Browse the list
VBLD63-300P	DN63CF	300	2	Through	Through	70.5	160-460		944	16.8	Add to quote This product is already in your quote request list. Browse the list
VBLD63-300P+
Flange size: DN63CF Travel (mm): 300 No. of positions: 2 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 160-460 Length B (mm) - see drawing: Length D (mm) - see drawing: 944 Weight (kg): 16.8 Add to quote This product is already in your quote request list. Browse the list
VBLD63-25/50P	DN63CF	50	3	Through	Through	70.5	120-170		404	11.5	Add to quote This product is already in your quote request list. Browse the list
VBLD63-25/50P+
Flange size: DN63CF Travel (mm): 50 No. of positions: 3 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 120-170 Length B (mm) - see drawing: Length D (mm) - see drawing: 404 Weight (kg): 11.5 Add to quote This product is already in your quote request list. Browse the list
VBLD63-50/100P	DN63CF	100	3	Through	Through	70.5	120-220		504	12.2	Add to quote This product is already in your quote request list. Browse the list
VBLD63-50/100P+
Flange size: DN63CF Travel (mm): 100 No. of positions: 3 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 120-220 Length B (mm) - see drawing: Length D (mm) - see drawing: 504 Weight (kg): 12.2 Add to quote This product is already in your quote request list. Browse the list
VBLD63-75/150P	DN63CF	150	3	Through	Through	70.5	130-280		614	13.5	Add to quote This product is already in your quote request list. Browse the list
VBLD63-75/150P+
Flange size: DN63CF Travel (mm): 150 No. of positions: 3 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 130-280 Length B (mm) - see drawing: Length D (mm) - see drawing: 614 Weight (kg): 13.5 Add to quote This product is already in your quote request list. Browse the list
VBLD63-100/200P	DN63CF	200	3	Through	Through	70.5	140-340		724	14.6	Add to quote This product is already in your quote request list. Browse the list
VBLD63-100/200P+
Flange size: DN63CF Travel (mm): 200 No. of positions: 3 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 140-340 Length B (mm) - see drawing: Length D (mm) - see drawing: 724 Weight (kg): 14.6 Add to quote This product is already in your quote request list. Browse the list
VBLD63-125/250P	DN63CF	250	3	Through	Through	70.5	150-400		834	15.7	Add to quote This product is already in your quote request list. Browse the list
VBLD63-125/250P+
Flange size: DN63CF Travel (mm): 250 No. of positions: 3 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 150-400 Length B (mm) - see drawing: Length D (mm) - see drawing: 834 Weight (kg): 15.7 Add to quote This product is already in your quote request list. Browse the list
VBLD63-150/300P	DN63CF	300	3	Through	Through	70.5	160-460		944	16.8	Add to quote This product is already in your quote request list. Browse the list
VBLD63-150/300P+
Flange size: DN63CF Travel (mm): 300 No. of positions: 3 Base flange hole type: Through Top flange hole type: Through Bellows inner diameter (mm): 70.5 Flange to flange distance (mm): 160-460 Length B (mm) - see drawing: Length D (mm) - see drawing: 944 Weight (kg): 16.8 Add to quote This product is already in your quote request list. Browse the list
