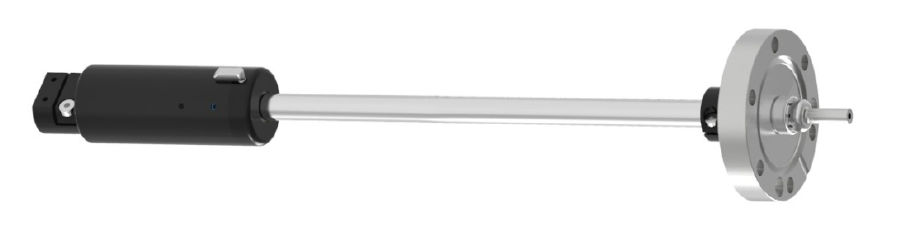

VBMDS40/16 Compact Linear transfer rod DN40CF
High quality UHV magnetically-coupled single axis transfer rod with linear and rotary motion on a DN40CF flange. Linear travels available from 50-300mm in 50mm increments. A high torque version is also available (see VBMDS40/16-HT)
Key Features
- Flange Size: DN40CF with through holes
- In-vacuum shaft diameter: 6mm
- In vacuum transfer tool attachment: M3 tapped hole
- Air side support attachment: M6 threaded hole on axis or 2xM4 holes at 90 degrees to axis
- Rotation: 0-360º
- Options available:
- bayonet holder for flag-style sample holders
- Integral transfer rod support struts (option “ST” on end of part number)
- Adaptation for linear-only motion
- Standard or high torque versions available (high torque with larger magnets)
- Other lengths and travels on request
| Part No. | Stroke (mm) | Length (mm) | Transferrable Torque (Nm) | Transferrable axial force (N) | Weight (kg) | |
|---|---|---|---|---|---|---|
| VBMDS40/16-50 | 50 | 182 | 0.6 | 38 | 0.59 | |
| VBMDS40/16-50 | ||||||
| VBMDS40/16-50HT | 50 | 214 | 0.9 | 54 | 0.71 | |
| VBMDS40/16-50HT | ||||||
| VBMDS40/16-100 | 100 | 232 | 0.6 | 38 | 0.62 | |
| VBMDS40/16-100 | ||||||
| VBMDS40/16-100HT | 100 | 264 | 0.9 | 54 | 0.74 | |
| VBMDS40/16-100HT | ||||||
| VBMDS40/16-150 | 150 | 282 | 0.6 | 38 | 0.65 | |
| VBMDS40/16-150 | ||||||
| VBMDS16-150HT-1 | 150 | 314 | 0.9 | 54 | 0.77 | |
| VBMDS16-150HT-1 | ||||||
| VBMDS40/16-200 | 200 | 332 | 0.6 | 38 | 0.68 | |
| VBMDS40/16-200 | ||||||
| VBMDS40/16-200HT | 200 | 364 | 0.9 | 54 | 0.80 | |
| VBMDS40/16-200HT | ||||||
| VBMDS40/16-250 | 250 | 408 | 0.6 | 38 | 0.71 | |
| VBMDS40/16-250 | ||||||
| VBMDS40/16-250HT | 250 | 414 | 0.9 | 54 | 0.93 | |
| VBMDS40/16-250HT | ||||||
| VBMDS40/16-300 | 300 | 432 | 0.6 | 38 | 0.74 | |
| VBMDS40/16-300 | ||||||
| VBMDS40/16-300HT | 300 | 464 | 0.9 | 54 | 0.96 | |
| VBMDS40/16-300HT |
