VBPD Series Bellows-Sealed Rotary Feedthroughs

Our VBPD series feedthroughs are equipped with a bellows-sealed, mechanically-coupled shaft in a variety of flange sizes and vacuum side length options. They are capable of full 360º rotation and can be operated manually or optionally by 2 phase stepper motor.

Key Features

Flange sizes from DN16CF-DN40CF as standard (special versions for DN50CF and DN63CF have been previously manufactured
Manually driven, optionally with 2 phase stepper motor or pneumatic actuator (certain models only)
For stepper motor versions we offer 2 types of stepper motor, NEMA17 or NEMA 23. NEMA17 is a cheaper, more compact and lower maximum torque solution than NEMA23.
Motor options with handwheel at the rear of the motor for manual operation
Option for limit (position) switches, mechanical rotational limitation on PD25 & PD40 models (+/-180º). Please ask!
Bakeable to 230ºC (motor must be removed for bakeout for the motorised version, manual version can be baked as-is)
Pressure range 1 bar to 10^-11 mbar
Flanges from 316LN, tube and bellows from 316L stainless steel
If you require a different shaft length, shaft end modification different motor or different flange, please ask us.

VBPD Series Bellows-Sealed Rotary Feedthroughs

VBPD Series Bellows-Sealed Rotary Feedthroughs - Image 2

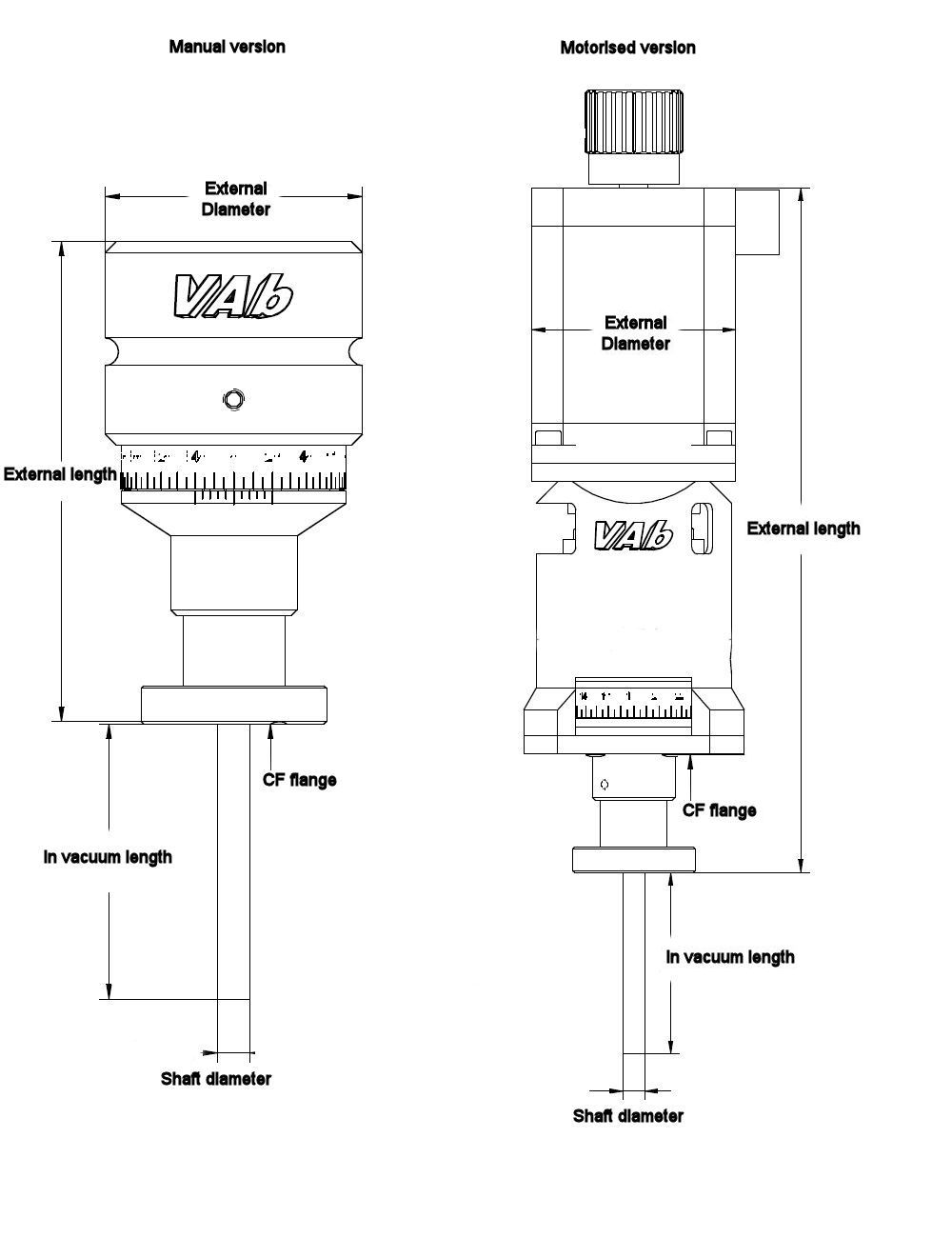

Part No.	Flange size	Shaft length in vacuum (mm)	Shaft diameter (mm)	Motor type	Max. transferrable torque (Nm)	Angular range	Angular resolution	Max. Rotation Speed (U/min)	External length (mm)	External diameter (mm)	Weight (kg)
VBPD16-50	DN16CF	50	6	None/Manual	1.5	0-360º	1º	500	87	47	0.56	Add to quote This product is already in your quote request list. Browse the list
VBPD16-50+
Flange size: DN16CF Shaft length in vacuum (mm): 50 Shaft diameter (mm): 6 Motor type: None/Manual Max. transferrable torque (Nm): 1.5 Angular range: 0-360º Angular resolution: 1º Max. Rotation Speed (U/min): 500 External length (mm): 87 External diameter (mm): 47 Weight (kg): 0.56 Add to quote This product is already in your quote request list. Browse the list
VBPD16-100	DN16CF	100	6	None/Manual	1.5	0-360º	1º	500	87	47	0.57	Add to quote This product is already in your quote request list. Browse the list
VBPD16-100+
Flange size: DN16CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 6 Motor type: None/Manual Max. transferrable torque (Nm): 1.5 Angular range: 0-360º Angular resolution: 1º Max. Rotation Speed (U/min): 500 External length (mm): 87 External diameter (mm): 47 Weight (kg): 0.57 Add to quote This product is already in your quote request list. Browse the list
VBPD16-50S2	DN16CF	50	6	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	1.5	0-360º	0.01º	500	189	56	1.7	Add to quote This product is already in your quote request list. Browse the list
VBPD16-50S2+
Flange size: DN16CF Shaft length in vacuum (mm): 50 Shaft diameter (mm): 6 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 1.5 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 500 External length (mm): 189 External diameter (mm): 56 Weight (kg): 1.7 Add to quote This product is already in your quote request list. Browse the list
VBPD16-100S2	DN16CF	100	6	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	1.5	0-360º	0.01º	500	189	56	1.7	Add to quote This product is already in your quote request list. Browse the list
VBPD16-100S2+
Flange size: DN16CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 6 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 1.5 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 500 External length (mm): 189 External diameter (mm): 56 Weight (kg): 1.7 Add to quote This product is already in your quote request list. Browse the list
VBPDM16-50S2	DN16CF	50	6	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	1.5	0-360º	0.01º	500	147	54	0.86	Add to quote This product is already in your quote request list. Browse the list
VBPDM16-50S2+
Flange size: DN16CF Shaft length in vacuum (mm): 50 Shaft diameter (mm): 6 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 1.5 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 500 External length (mm): 147 External diameter (mm): 54 Weight (kg): 0.86 Add to quote This product is already in your quote request list. Browse the list
VBPDM16-100S2	DN16CF	100	6	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	1.5	0-360º	0.01º	500	147	54	0.87	Add to quote This product is already in your quote request list. Browse the list
VBPDM16-100S2+
Flange size: DN16CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 6 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 1.5 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 500 External length (mm): 147 External diameter (mm): 54 Weight (kg): 0.87 Add to quote This product is already in your quote request list. Browse the list
VBPD16-50P	DN16CF	50	6	Pneumatic	0.5	+/-90º	1º	N/A	146	58	0.75	Add to quote This product is already in your quote request list. Browse the list
VBPD16-50P+
Flange size: DN16CF Shaft length in vacuum (mm): 50 Shaft diameter (mm): 6 Motor type: Pneumatic Max. transferrable torque (Nm): 0.5 Angular range: +/-90º Angular resolution: 1º Max. Rotation Speed (U/min): N/A External length (mm): 146 External diameter (mm): 58 Weight (kg): 0.75 Add to quote This product is already in your quote request list. Browse the list
VBPD16-100P	DN16CF	100	6	Pneumatic	0.5	+/-90º	1º	N/A	146	58	0.80	Add to quote This product is already in your quote request list. Browse the list
VBPD16-100P+
Flange size: DN16CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 6 Motor type: Pneumatic Max. transferrable torque (Nm): 0.5 Angular range: +/-90º Angular resolution: 1º Max. Rotation Speed (U/min): N/A External length (mm): 146 External diameter (mm): 58 Weight (kg): 0.80 Add to quote This product is already in your quote request list. Browse the list
VBPD25-50	DN25CF	50	10	None/Manual	10	0-360º	1º	500	97	60	0.66	Add to quote This product is already in your quote request list. Browse the list
VBPD25-50+
Flange size: DN25CF Shaft length in vacuum (mm): 50 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 10 Angular range: 0-360º Angular resolution: 1º Max. Rotation Speed (U/min): 500 External length (mm): 97 External diameter (mm): 60 Weight (kg): 0.66 Add to quote This product is already in your quote request list. Browse the list
VBPD25-100	DN25CF	100	10	None/Manual	10	0-360º	1º	500	97	60	0.67	Add to quote This product is already in your quote request list. Browse the list
VBPD25-100+
Flange size: DN25CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 10 Angular range: 0-360º Angular resolution: 1º Max. Rotation Speed (U/min): 500 External length (mm): 97 External diameter (mm): 60 Weight (kg): 0.67 Add to quote This product is already in your quote request list. Browse the list
VBPD25-50S2	DN25CF	50	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	10	0-360º	0.01º	500	97	61	1.8	Add to quote This product is already in your quote request list. Browse the list
VBPD25-50S2+
Flange size: DN25CF Shaft length in vacuum (mm): 50 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 10 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 500 External length (mm): 97 External diameter (mm): 61 Weight (kg): 1.8 Add to quote This product is already in your quote request list. Browse the list
VBPD25-100S2	DN25CF	100	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	10	0-360º	0.01º	500	97	61	1.8	Add to quote This product is already in your quote request list. Browse the list
VBPD25-100S2+
Flange size: DN25CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 10 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 500 External length (mm): 97 External diameter (mm): 61 Weight (kg): 1.8 Add to quote This product is already in your quote request list. Browse the list
VBPDM25-50-S2	DN25CF	50	10	Phasen Motor PKP 244 MD 15B-L (Oriental) NEMA 17	10	0-360º	0.01º	500			1.0	Add to quote This product is already in your quote request list. Browse the list
VBPDM25-50-S2+
Flange size: DN25CF Shaft length in vacuum (mm): 50 Shaft diameter (mm): 10 Motor type: Phasen Motor PKP 244 MD 15B-L (Oriental) NEMA 17 Max. transferrable torque (Nm): 10 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 500 External length (mm): External diameter (mm): Weight (kg): 1.0 Add to quote This product is already in your quote request list. Browse the list
VBPDM25-100S2	DN25CF	100	10	Phasen Motor PKP 244 MD 15B-L (Oriental) NEMA 17	10	0-360º	0.01º	500			1.0	Add to quote This product is already in your quote request list. Browse the list
VBPDM25-100S2+
Flange size: DN25CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: Phasen Motor PKP 244 MD 15B-L (Oriental) NEMA 17 Max. transferrable torque (Nm): 10 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 500 External length (mm): External diameter (mm): Weight (kg): 1.0 Add to quote This product is already in your quote request list. Browse the list
VBPD40-75	DN40CF	75	10	None/Manual	12	0-360º	0.2º	200	102	75	1.3	Add to quote This product is already in your quote request list. Browse the list
VBPD40-75+
Flange size: DN40CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): 102 External diameter (mm): 75 Weight (kg): 1.3 Add to quote This product is already in your quote request list. Browse the list
VBPD40-100	DN40CF	100	10	None/Manual	12	0-360º	0.2º	200	102	75	1.3	Add to quote This product is already in your quote request list. Browse the list
VBPD40-100+
Flange size: DN40CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): 102 External diameter (mm): 75 Weight (kg): 1.3 Add to quote This product is already in your quote request list. Browse the list
VBPD40-125	DN40CF	125	10	None/Manual	12	0-360º	0.2º	200	102	75	1.35	Add to quote This product is already in your quote request list. Browse the list
VBPD40-125+
Flange size: DN40CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): 102 External diameter (mm): 75 Weight (kg): 1.35 Add to quote This product is already in your quote request list. Browse the list
VBPD40-150	DN40CF	150	10	None/Manual	12	0-360º	0.2º	200	102	75	1.4	Add to quote This product is already in your quote request list. Browse the list
VBPD40-150+
Flange size: DN40CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): 102 External diameter (mm): 75 Weight (kg): 1.4 Add to quote This product is already in your quote request list. Browse the list
VBPD40-75S2	DN40CF	75	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200	224	122	2.6	Add to quote This product is already in your quote request list. Browse the list
VBPD40-75S2+
Flange size: DN40CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): 224 External diameter (mm): 122 Weight (kg): 2.6 Add to quote This product is already in your quote request list. Browse the list
VBPD40-100S2	DN40CF	100	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200	224	122	2.6	Add to quote This product is already in your quote request list. Browse the list
VBPD40-100S2+
Flange size: DN40CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): 224 External diameter (mm): 122 Weight (kg): 2.6 Add to quote This product is already in your quote request list. Browse the list
VBPD40-125S2	DN40CF	125	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200	224	122	2.65	Add to quote This product is already in your quote request list. Browse the list
VBPD40-125S2+
Flange size: DN40CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): 224 External diameter (mm): 122 Weight (kg): 2.65 Add to quote This product is already in your quote request list. Browse the list
VBPD40-150S2	DN40CF	150	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200	224	122	2.7	Add to quote This product is already in your quote request list. Browse the list
VBPD40-150S2+
Flange size: DN40CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): 224 External diameter (mm): 122 Weight (kg): 2.7 Add to quote This product is already in your quote request list. Browse the list
VBPDM40-75S2	DN40CF	75	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200	224	122	1.8	Add to quote This product is already in your quote request list. Browse the list
VBPDM40-75S2+
Flange size: DN40CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): 224 External diameter (mm): 122 Weight (kg): 1.8 Add to quote This product is already in your quote request list. Browse the list
VBPDM40-100S2	DN40CF	100	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200	224	122	1.8	Add to quote This product is already in your quote request list. Browse the list
VBPDM40-100S2+
Flange size: DN40CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): 224 External diameter (mm): 122 Weight (kg): 1.8 Add to quote This product is already in your quote request list. Browse the list
VBPDM40-125S2	DN40CF	125	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200			1.85	Add to quote This product is already in your quote request list. Browse the list
VBPDM40-125S2+
Flange size: DN40CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): 1.85 Add to quote This product is already in your quote request list. Browse the list
VBPDM40-150S2	DN40CF	150	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200			1.9	Add to quote This product is already in your quote request list. Browse the list
VBPDM40-150S2+
Flange size: DN40CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): 1.9 Add to quote This product is already in your quote request list. Browse the list
VBPD50-75	DN50CF	75	10	None/Manual	12	0-360º	0.2º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD50-75+
Flange size: DN50CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD50-100	DN50CF	100	10	None/Manual	12	0-360º	0.2º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD50-100+
Flange size: DN50CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD50-125	DN50CF	125	10	None/Manual	12	0-360º	0.2º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD50-125+
Flange size: DN50CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD50-150	DN50CF	150	10	None/Manual	12	0-360º	0.2º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD50-150+
Flange size: DN50CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD50-75S2	DN50CF	75	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD50-75S2+
Flange size: DN50CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD50-100S2	DN50CF	100	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD50-100S2+
Flange size: DN50CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD50-125S2	DN50CF	125	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD50-125S2+
Flange size: DN50CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD50-150S2	DN50CF	150	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD50-150S2+
Flange size: DN50CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPDM50-75S2	DN50CF	75	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPDM50-75S2+
Flange size: DN50CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPDM50-100S2	DN50CF	100	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPDM50-100S2+
Flange size: DN50CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPDM50-125S2	DN50CF	125	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPDM50-125S2+
Flange size: DN50CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPDM50-150S2	DN50CF	150	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPDM50-150S2+
Flange size: DN50CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD63-75	DN63CF	75	10	None/Manual	12	0-360º	0.2º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD63-75+
Flange size: DN63CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD63-100	DN63CF	100	10	None/Manual	12	0-360º	0.2º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD63-100+
Flange size: DN63CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD63-125	DN63CF	125	10	None/Manual	12	0-360º	0.2º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD63-125+
Flange size: DN63CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD63-150	DN63CF	150	10	None/Manual	12	0-360º	0.2º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD63-150+
Flange size: DN63CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: None/Manual Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.2º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD63-75S2	DN63CF	75	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD63-75S2+
Flange size: DN63CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD63-100S2	DN63CF	100	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD63-100S2+
Flange size: DN63CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD63-125S2	DN63CF	125	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD63-125S2+
Flange size: DN63CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPD63-150S2	DN63CF	150	10	2 Phase PKP 268 MD 28B (Oriental) NEMA 23	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPD63-150S2+
Flange size: DN63CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 268 MD 28B (Oriental) NEMA 23 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPDM63-75S2	DN63CF	75	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPDM63-75S2+
Flange size: DN63CF Shaft length in vacuum (mm): 75 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPDM63-100S2	DN63CF	100	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPDM63-100S2+
Flange size: DN63CF Shaft length in vacuum (mm): 100 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPDM63-125S2	DN63CF	125	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPDM63-125S2+
Flange size: DN63CF Shaft length in vacuum (mm): 125 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
VBPDM63-150S2	DN63CF	150	10	2 Phase PKP 244 MD 15B (Oriental) NEMA 17	12	0-360º	0.01º	200				Add to quote This product is already in your quote request list. Browse the list
VBPDM63-150S2+
Flange size: DN63CF Shaft length in vacuum (mm): 150 Shaft diameter (mm): 10 Motor type: 2 Phase PKP 244 MD 15B (Oriental) NEMA 17 Max. transferrable torque (Nm): 12 Angular range: 0-360º Angular resolution: 0.01º Max. Rotation Speed (U/min): 200 External length (mm): External diameter (mm): Weight (kg): Add to quote This product is already in your quote request list. Browse the list
