VBPM Series XY Tables

The VBPM series XY stages provide a wide range of options for flange size, bellows diameter and motorised or manual operation. Please see the product table for full details.

Key Features

X/Y travel +/-12.5mm, +/-25 or +/-40mm options available
Options for most flange sizes – see table below.
Micrometer scales on all axes for repeatable positioning
Resolution: 0.01mm manual, 0.001mm motorised
UHV compatible, bakeout up to 230ºC (motors have to be removed if motorised)
Flanges 316LN, tube and bellows 316L stainless steel
Pressure range 1 bar – 1×10^-11 mbar
Manual or motorised option. Motorised versions use the Oriental PKP 268 MD 28B 2 phase stepper motors
Optional limit switches, linear encoder or motor encoder on request (please ask)

When selecting an XY manipulator, it is important to consider:

Mounting flange
To avoid limiting XY travel, diameter of any parts passing through the stage plus the total XY travel must be less than the base flange/bellows inner diameter
Whether manual or motorised operation is needed.
How much movement is needed

Part No.	Base flange size (standard)	Top flange size (standard)	X and Y Travel (mm)	Actuation	Bellows inner diameter (mm)	Max. weight of mounted part (kg)	Weight (kg)	Options for base flange	Options for top flange

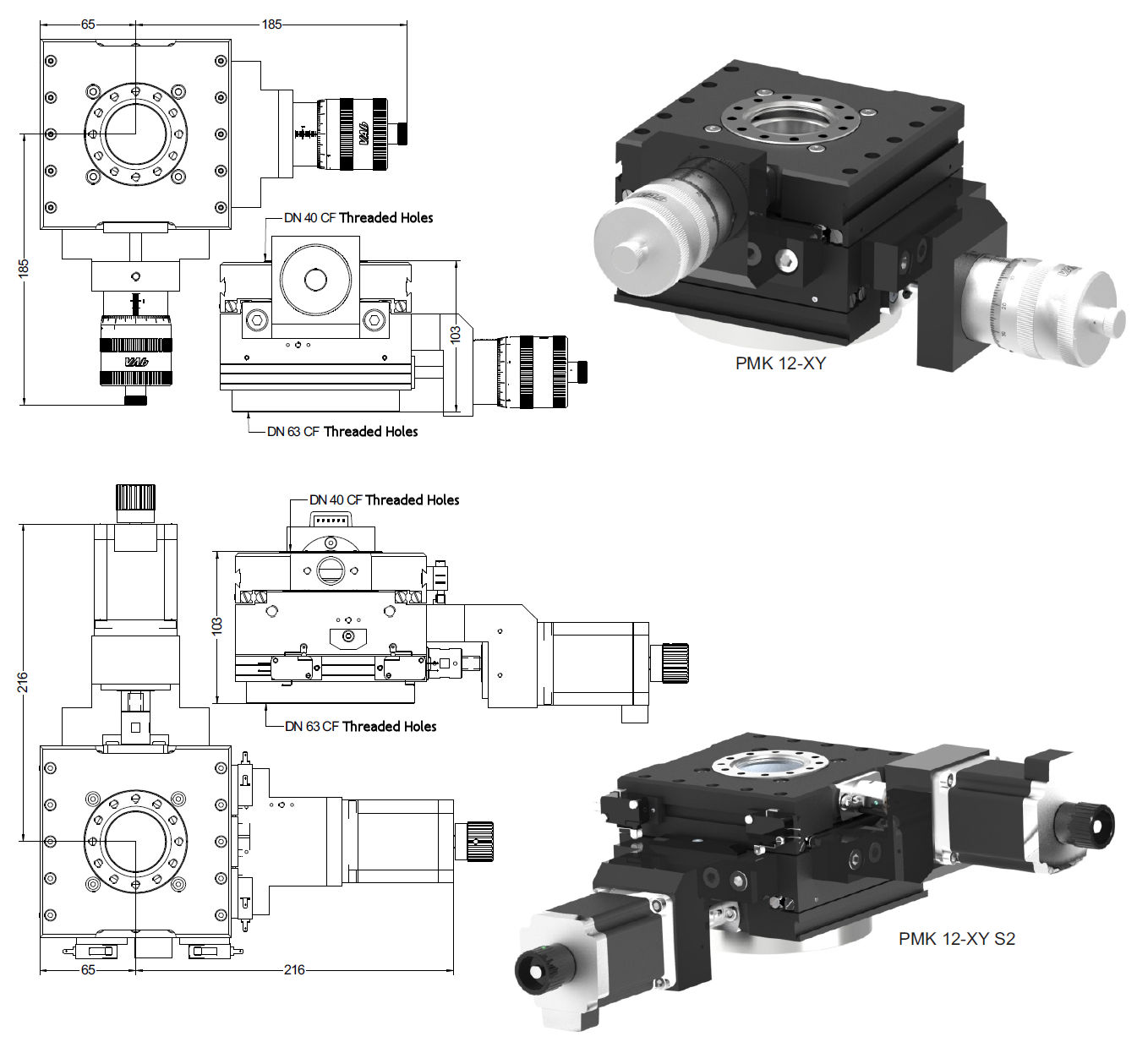

VBPMK12-XY	DN63CF Threaded	DN40CF Threaded, double drilled	+/-12.5	Manual	52.4	20	5.6	DN40CF		Add to quote This product is already in your quote request list. Browse the list
VBPMK12-XY+
Base flange size (standard): DN63CF Threaded Top flange size (standard): DN40CF Threaded, double drilled X and Y Travel (mm): +/-12.5 Actuation: Manual Bellows inner diameter (mm): 52.4 Max. weight of mounted part (kg): 20 Weight (kg): 5.6 Options for base flange: DN40CF Options for top flange: Add to quote This product is already in your quote request list. Browse the list
VBPMK12-XY-S2	DN63CF Threaded	DN40CF Threaded, double drilled	+/-12.5	Motorised	52.4	20	7.3	DN40CF		Add to quote This product is already in your quote request list. Browse the list
VBPMK12-XY-S2+
Base flange size (standard): DN63CF Threaded Top flange size (standard): DN40CF Threaded, double drilled X and Y Travel (mm): +/-12.5 Actuation: Motorised Bellows inner diameter (mm): 52.4 Max. weight of mounted part (kg): 20 Weight (kg): 7.3 Options for base flange: DN40CF Options for top flange: Add to quote This product is already in your quote request list. Browse the list

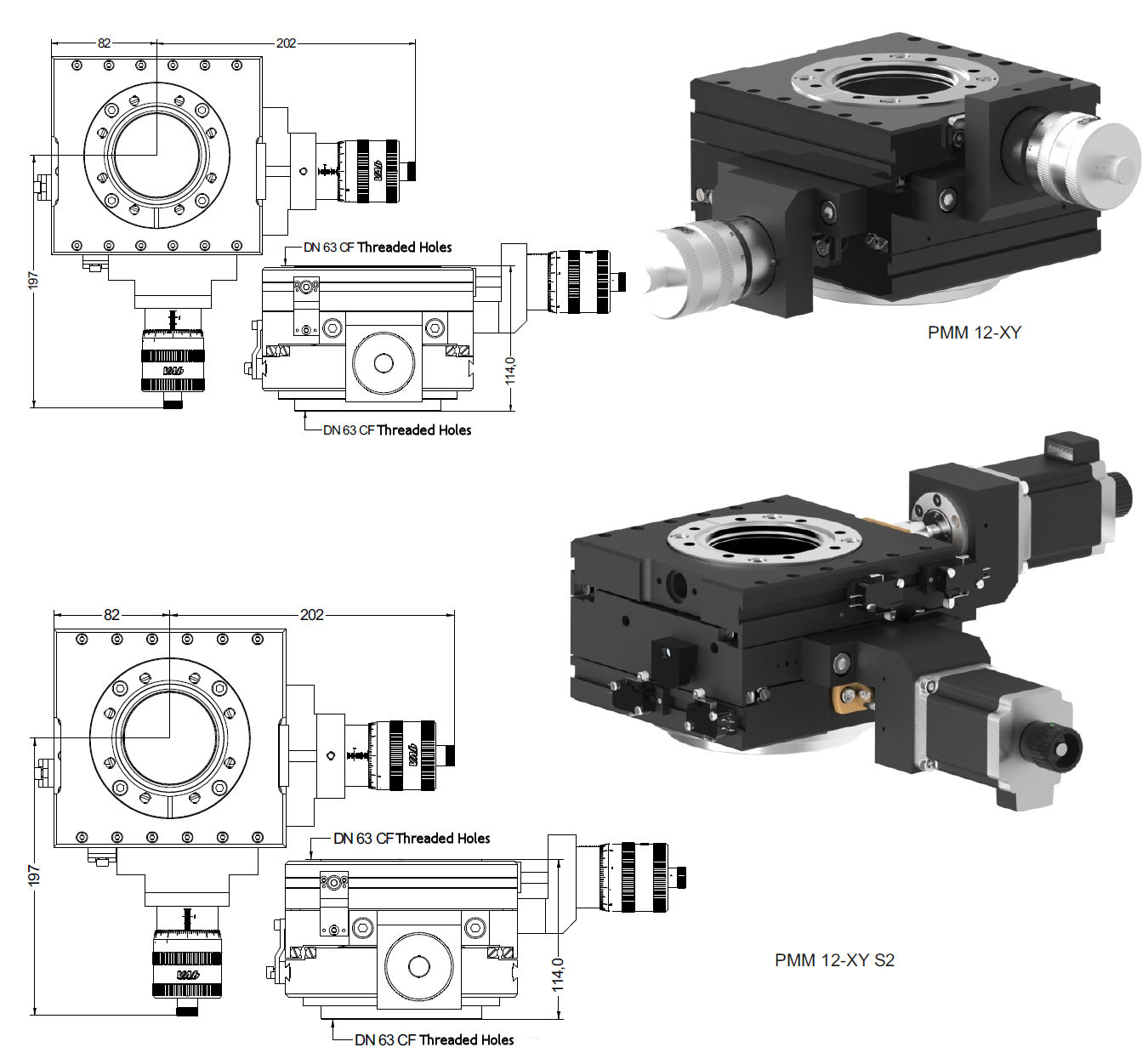

VBPMM12-XY	DN63CF Threaded	DN63CF Threaded	+/-12.5	Manual	65	20	7.7	DN100CF Threaded	DN40CF Threaded, double drilled	Add to quote This product is already in your quote request list. Browse the list
VBPMM12-XY+
Base flange size (standard): DN63CF Threaded Top flange size (standard): DN63CF Threaded X and Y Travel (mm): +/-12.5 Actuation: Manual Bellows inner diameter (mm): 65 Max. weight of mounted part (kg): 20 Weight (kg): 7.7 Options for base flange: DN100CF Threaded Options for top flange: DN40CF Threaded, double drilled Add to quote This product is already in your quote request list. Browse the list
VBPMM12-XY-S2	DN63CF Threaded	DN63CF Threaded	+/-12.5	Motorised	65	20	9.8	DN100CF Threaded	DN40CF Threaded, double drilled	Add to quote This product is already in your quote request list. Browse the list
VBPMM12-XY-S2+
Base flange size (standard): DN63CF Threaded Top flange size (standard): DN63CF Threaded X and Y Travel (mm): +/-12.5 Actuation: Motorised Bellows inner diameter (mm): 65 Max. weight of mounted part (kg): 20 Weight (kg): 9.8 Options for base flange: DN100CF Threaded Options for top flange: DN40CF Threaded, double drilled Add to quote This product is already in your quote request list. Browse the list

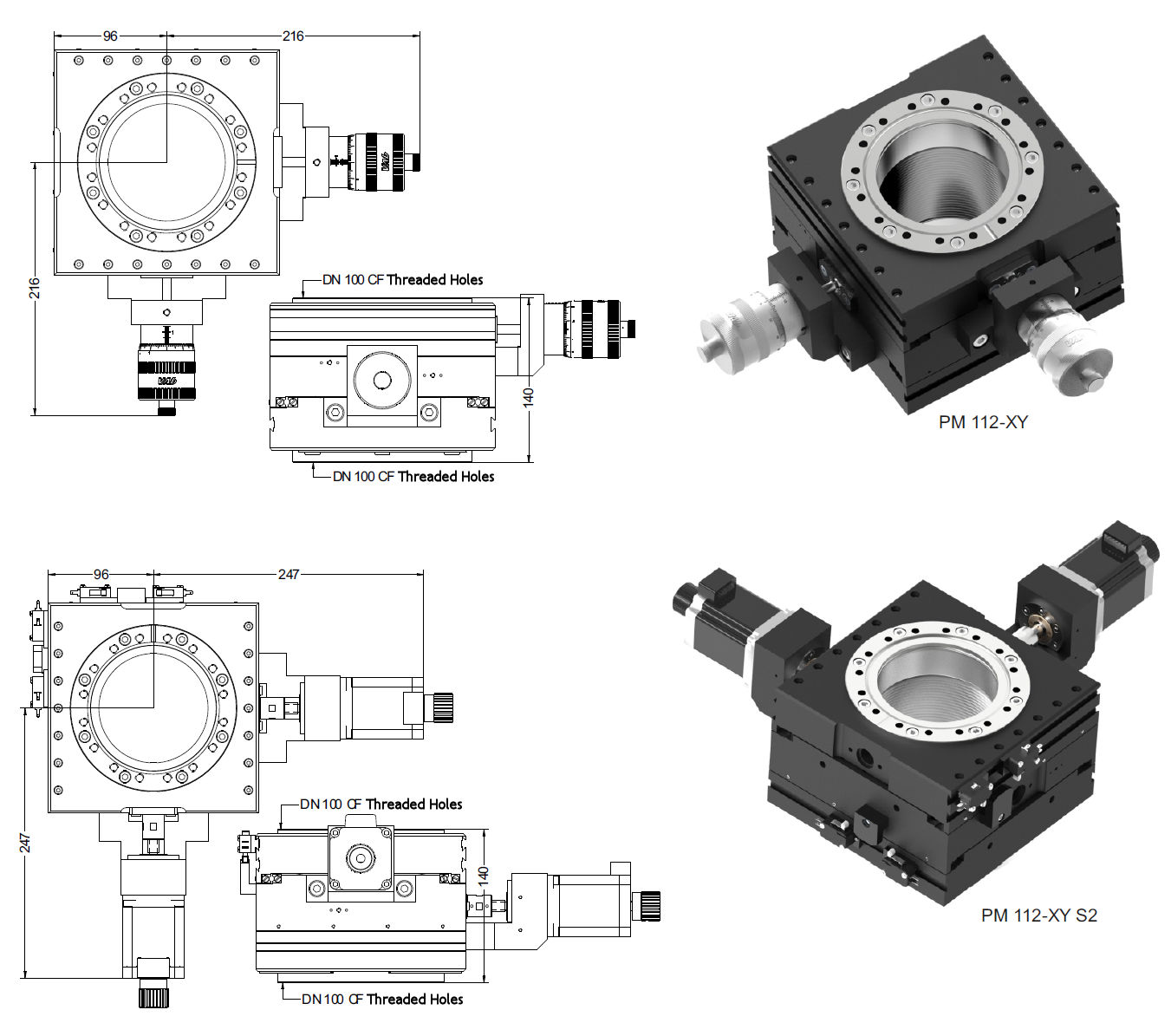

VBPM112-XY	DN100CF Threaded	DN100CF Threaded	+/-12.5	Manual	101.5	30	9.3	DN160CF Threaded		Add to quote This product is already in your quote request list. Browse the list
VBPM112-XY+
Base flange size (standard): DN100CF Threaded Top flange size (standard): DN100CF Threaded X and Y Travel (mm): +/-12.5 Actuation: Manual Bellows inner diameter (mm): 101.5 Max. weight of mounted part (kg): 30 Weight (kg): 9.3 Options for base flange: DN160CF Threaded Options for top flange: Add to quote This product is already in your quote request list. Browse the list
VBPM112-XY-S2	DN100CF Threaded	DN100CF Threaded	+/-12.5	Motorised	101.5	30	11.5	DN160CF Threaded		Add to quote This product is already in your quote request list. Browse the list
VBPM112-XY-S2+
Base flange size (standard): DN100CF Threaded Top flange size (standard): DN100CF Threaded X and Y Travel (mm): +/-12.5 Actuation: Motorised Bellows inner diameter (mm): 101.5 Max. weight of mounted part (kg): 30 Weight (kg): 11.5 Options for base flange: DN160CF Threaded Options for top flange: Add to quote This product is already in your quote request list. Browse the list

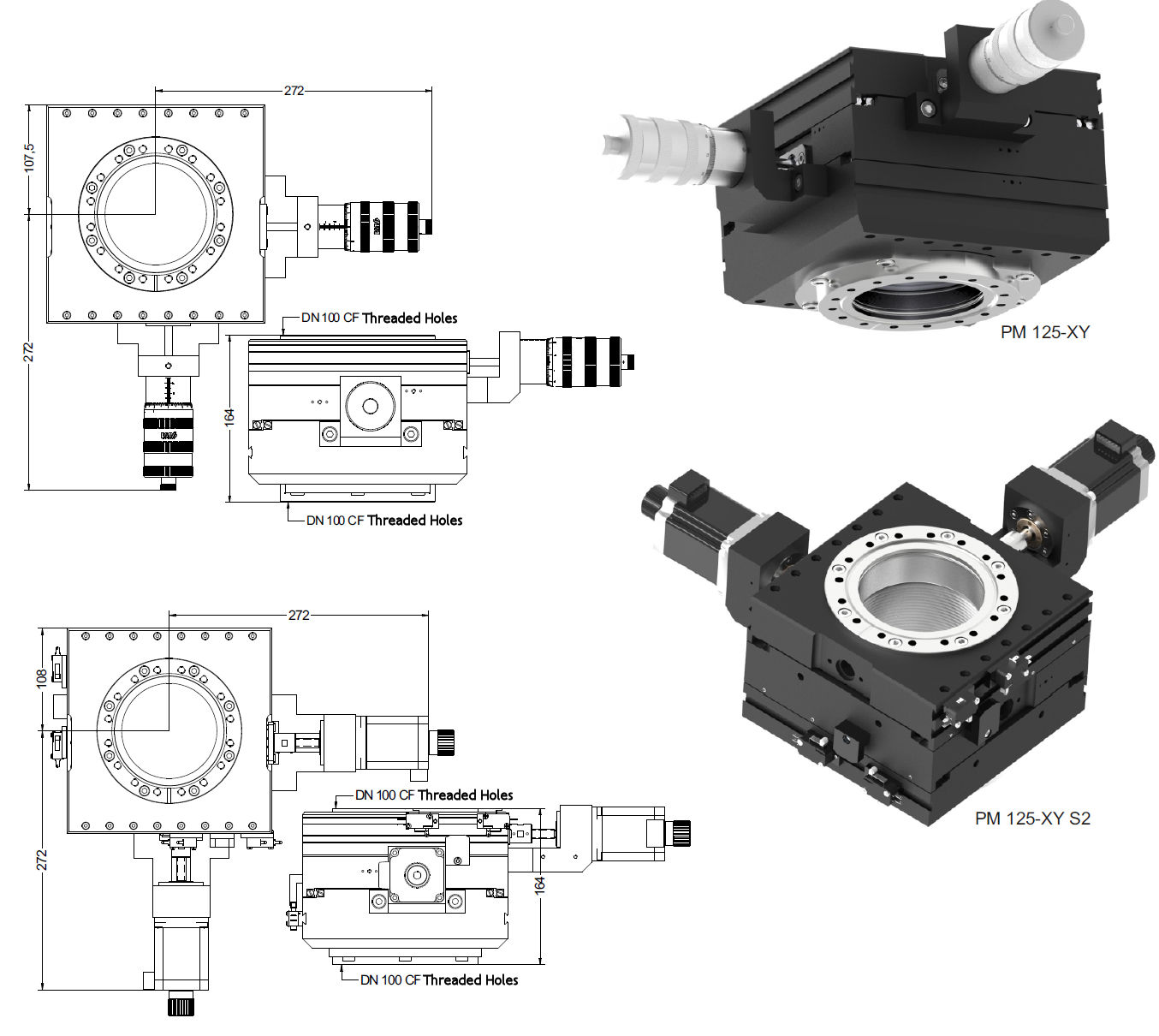

VBPM125-XY	DN100CF Threaded	DN100CF Threaded	+/-25	Manual	101.5	30	14.9	DN160CF Threaded		Add to quote This product is already in your quote request list. Browse the list
VBPM125-XY+
Base flange size (standard): DN100CF Threaded Top flange size (standard): DN100CF Threaded X and Y Travel (mm): +/-25 Actuation: Manual Bellows inner diameter (mm): 101.5 Max. weight of mounted part (kg): 30 Weight (kg): 14.9 Options for base flange: DN160CF Threaded Options for top flange: Add to quote This product is already in your quote request list. Browse the list
VBPM125-XY-S2	DN100CF Threaded	DN100CF Threaded	+/-25	Motorised	101.5	30	16.2	DN160CF Threaded		Add to quote This product is already in your quote request list. Browse the list
VBPM125-XY-S2+
Base flange size (standard): DN100CF Threaded Top flange size (standard): DN100CF Threaded X and Y Travel (mm): +/-25 Actuation: Motorised Bellows inner diameter (mm): 101.5 Max. weight of mounted part (kg): 30 Weight (kg): 16.2 Options for base flange: DN160CF Threaded Options for top flange: Add to quote This product is already in your quote request list. Browse the list

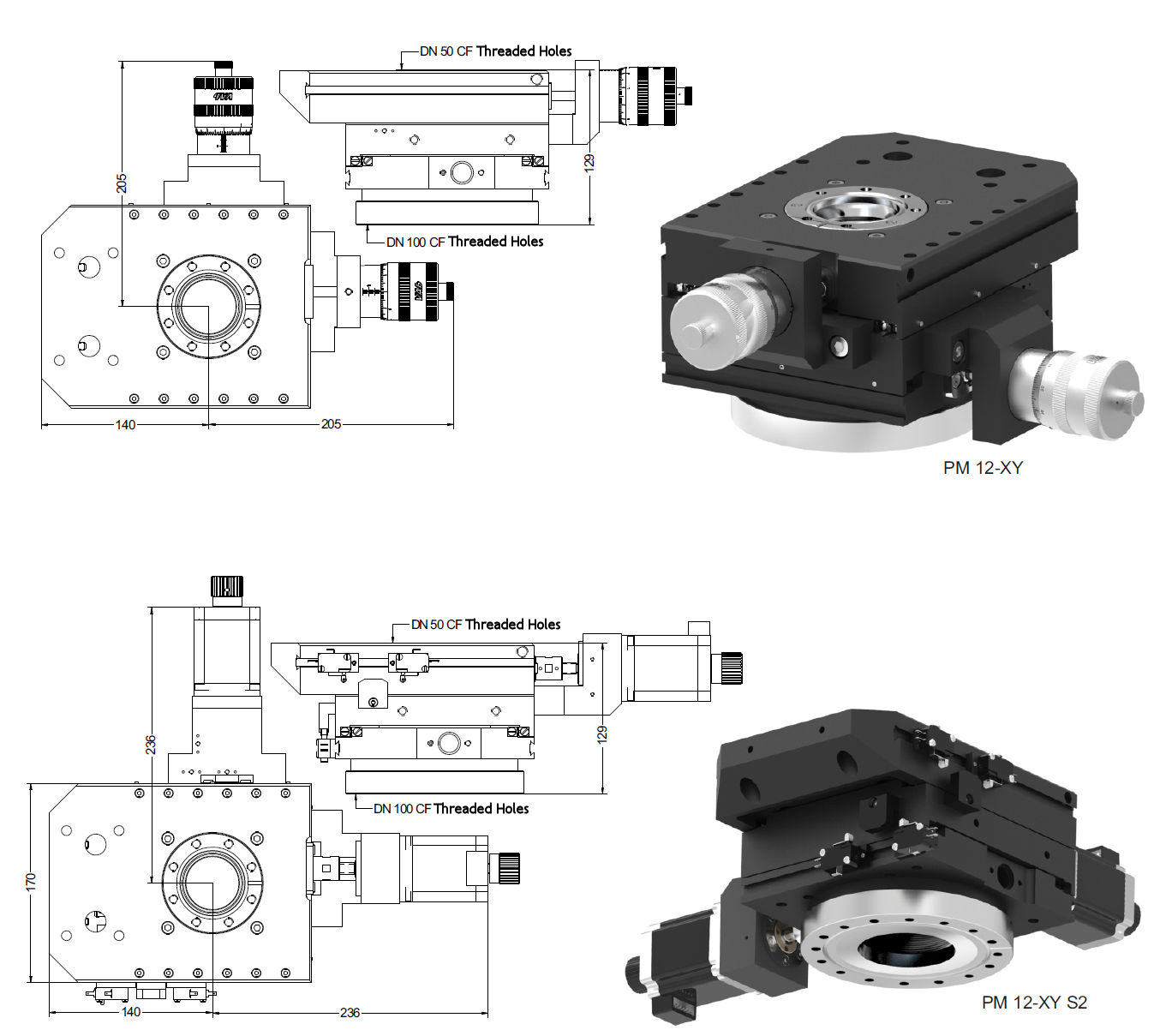

VBPM12-XY	DN100CF Threaded	DN50CF Threaded	+/-12.5	Manual	70.5	30	10.9	DN 63/160 CF Threaded	DN40/63CF threaded	Add to quote This product is already in your quote request list. Browse the list
VBPM12-XY+
Base flange size (standard): DN100CF Threaded Top flange size (standard): DN50CF Threaded X and Y Travel (mm): +/-12.5 Actuation: Manual Bellows inner diameter (mm): 70.5 Max. weight of mounted part (kg): 30 Weight (kg): 10.9 Options for base flange: DN 63/160 CF Threaded Options for top flange: DN40/63CF threaded Add to quote This product is already in your quote request list. Browse the list
VBPM12-XY-S2	DN100CF Threaded	DN50CF Threaded	+/-12.5	Motorised	70.5	30	12.8	DN 63/160 CF Threaded	DN40/63CF threaded	Add to quote This product is already in your quote request list. Browse the list
VBPM12-XY-S2+
Base flange size (standard): DN100CF Threaded Top flange size (standard): DN50CF Threaded X and Y Travel (mm): +/-12.5 Actuation: Motorised Bellows inner diameter (mm): 70.5 Max. weight of mounted part (kg): 30 Weight (kg): 12.8 Options for base flange: DN 63/160 CF Threaded Options for top flange: DN40/63CF threaded Add to quote This product is already in your quote request list. Browse the list
VBPM25-XY	DN160CF Threaded	DN50CF Threaded	+/-25	Manual	92	30	16.3	DN100CF Threaded	DN40/63CF threaded	Add to quote This product is already in your quote request list. Browse the list
VBPM25-XY+
Base flange size (standard): DN160CF Threaded Top flange size (standard): DN50CF Threaded X and Y Travel (mm): +/-25 Actuation: Manual Bellows inner diameter (mm): 92 Max. weight of mounted part (kg): 30 Weight (kg): 16.3 Options for base flange: DN100CF Threaded Options for top flange: DN40/63CF threaded Add to quote This product is already in your quote request list. Browse the list
VBPM25-XY-S2	DN160CF Threaded	DN50CF Threaded	+/-25	Motorised	92	30	17.8	DN100CF Threaded	DN40/63CF threaded	Add to quote This product is already in your quote request list. Browse the list
VBPM25-XY-S2+
Base flange size (standard): DN160CF Threaded Top flange size (standard): DN50CF Threaded X and Y Travel (mm): +/-25 Actuation: Motorised Bellows inner diameter (mm): 92 Max. weight of mounted part (kg): 30 Weight (kg): 17.8 Options for base flange: DN100CF Threaded Options for top flange: DN40/63CF threaded Add to quote This product is already in your quote request list. Browse the list

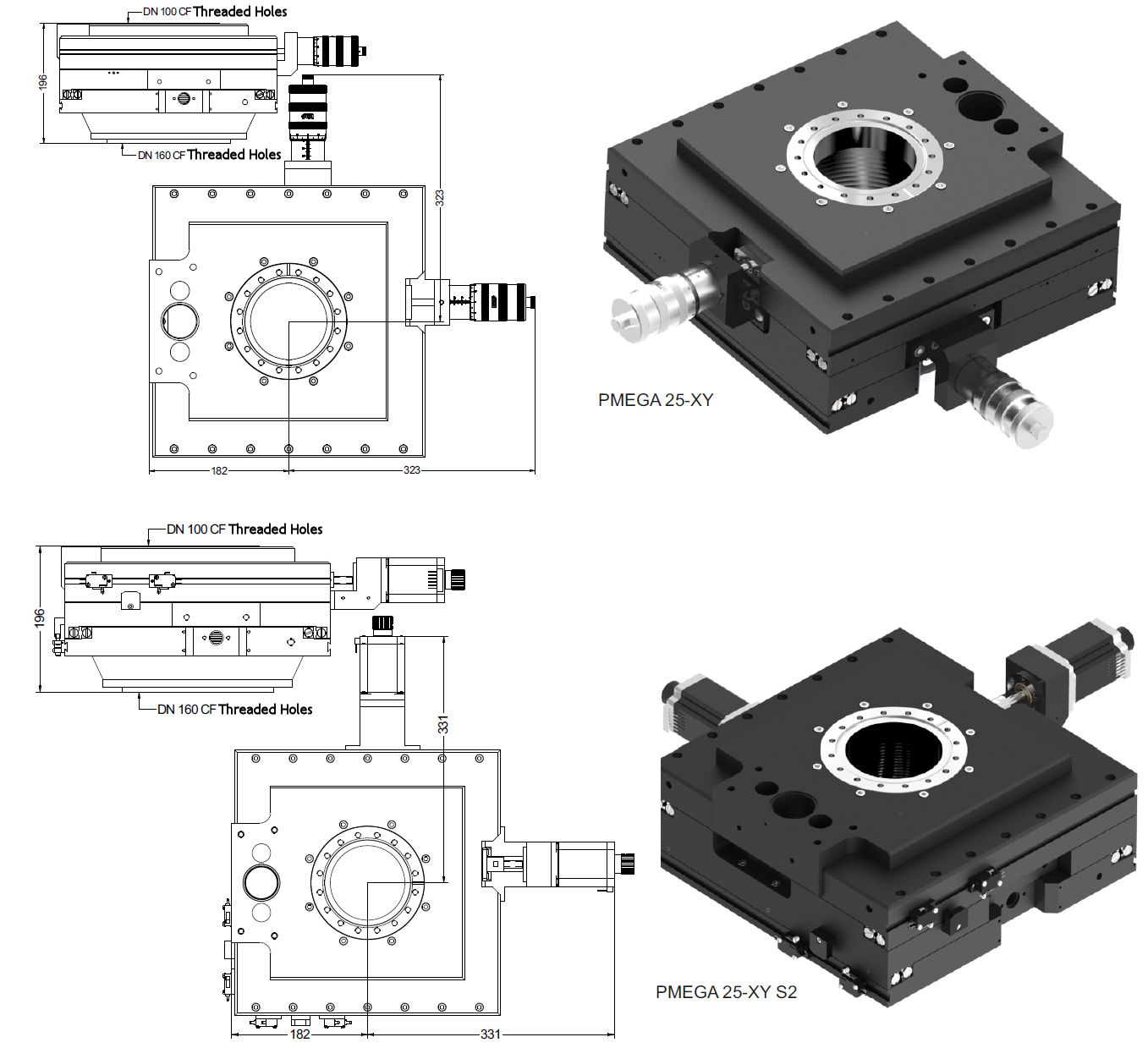

VBPMEGA25-XY	DN160CF Threaded	DN100CF Threaded	+/-25	Manual	150	40	41.5	DN200CF Threaded		Add to quote This product is already in your quote request list. Browse the list
VBPMEGA25-XY+
Base flange size (standard): DN160CF Threaded Top flange size (standard): DN100CF Threaded X and Y Travel (mm): +/-25 Actuation: Manual Bellows inner diameter (mm): 150 Max. weight of mounted part (kg): 40 Weight (kg): 41.5 Options for base flange: DN200CF Threaded Options for top flange: Add to quote This product is already in your quote request list. Browse the list
VBPMEGA40-XY-S2	DN160CF Threaded	DN100CF Threaded	+/-40	Motorised	102	25	46	DN 100/200 CF Threaded	DN100CF threaded	Add to quote This product is already in your quote request list. Browse the list
VBPMEGA40-XY-S2+
Base flange size (standard): DN160CF Threaded Top flange size (standard): DN100CF Threaded X and Y Travel (mm): +/-40 Actuation: Motorised Bellows inner diameter (mm): 102 Max. weight of mounted part (kg): 25 Weight (kg): 46 Options for base flange: DN 100/200 CF Threaded Options for top flange: DN100CF threaded Add to quote This product is already in your quote request list. Browse the list
VBMASTER40-XY-S2	DN250CF Threaded	DN160CF Threaded	+/-40	Motorised	162.5	50	69	DN 160/200 CF Threaded		Add to quote This product is already in your quote request list. Browse the list
VBMASTER40-XY-S2+
Base flange size (standard): DN250CF Threaded Top flange size (standard): DN160CF Threaded X and Y Travel (mm): +/-40 Actuation: Motorised Bellows inner diameter (mm): 162.5 Max. weight of mounted part (kg): 50 Weight (kg): 69 Options for base flange: DN 160/200 CF Threaded Options for top flange: Add to quote This product is already in your quote request list. Browse the list
