VBPMK12 Series XYZ Manipulators

The PMK12 series is single bellows XYZ manipulator available as standard with a DN63CF base flange (DN100CF by request), and a DN40CF moving flange (DN63CF by request). With a 65mm inner diameter of the bellows, to obtain the full +/-12.5mm XY travel, the sample stage support rod and any associated wiring must be 40mm diameter or less. The manipulator can be supplied with all axes manually-operated, motorised Z axis or with all 3 axes motorised. Z travels are available from 50-600mm. The manipulator has a maximum 20kg load on the z axis.

Key Features

Z travel from 50-600mm in 50mm increments
X/Y travel +/-12.5mm vector sum
Bellows inner diameter 65mm
Micrometer scales on all axes for repeatable positioning
Resolution: 0.01mm manual, 0.001mm motorised
DN63CF base flange with through holes
DN40CF top flange with threaded holes
UHV compatible, bakeout up to 230ºC (motors have to be removed if motorised)
Flanges 316LN, tube and bellows 316L stainless steel
Pressure range 1 bar – 1×10^-11 mbar
Two positionable mechanical limits for the Z axis to limit the travel within its range
Maximum load on Z axis 20kg
Options available (not listed in the table below, please ask):
- DN40CF top flange with through holes instead of threaded (add TD at end of part number)
- DN63CF top flange with threaded holes instead of DN40CF with threaded holes
- DN100CF base flange (bellows size unchanged, adds 2.5mm to length A, add B100 at end of part number)
- DN100CF base flange option with additional 6xDN16CF around it angled downwards at 45º for feedthroughs etc (add K at end of part number)
- motorisation with 2 phase stepper motor PKP268MD28B (Oriental) NEMA 23 / 2 Nm
- Linear encoder, motor encoder
- Limit switches to provide feedback if an axis reaches either end of its travel

VBPMK12 Series XYZ Manipulators - Image 2

VBPMK12 Series XYZ Manipulators - Image 3

VBPMK12 Series XYZ Manipulators - Image 4

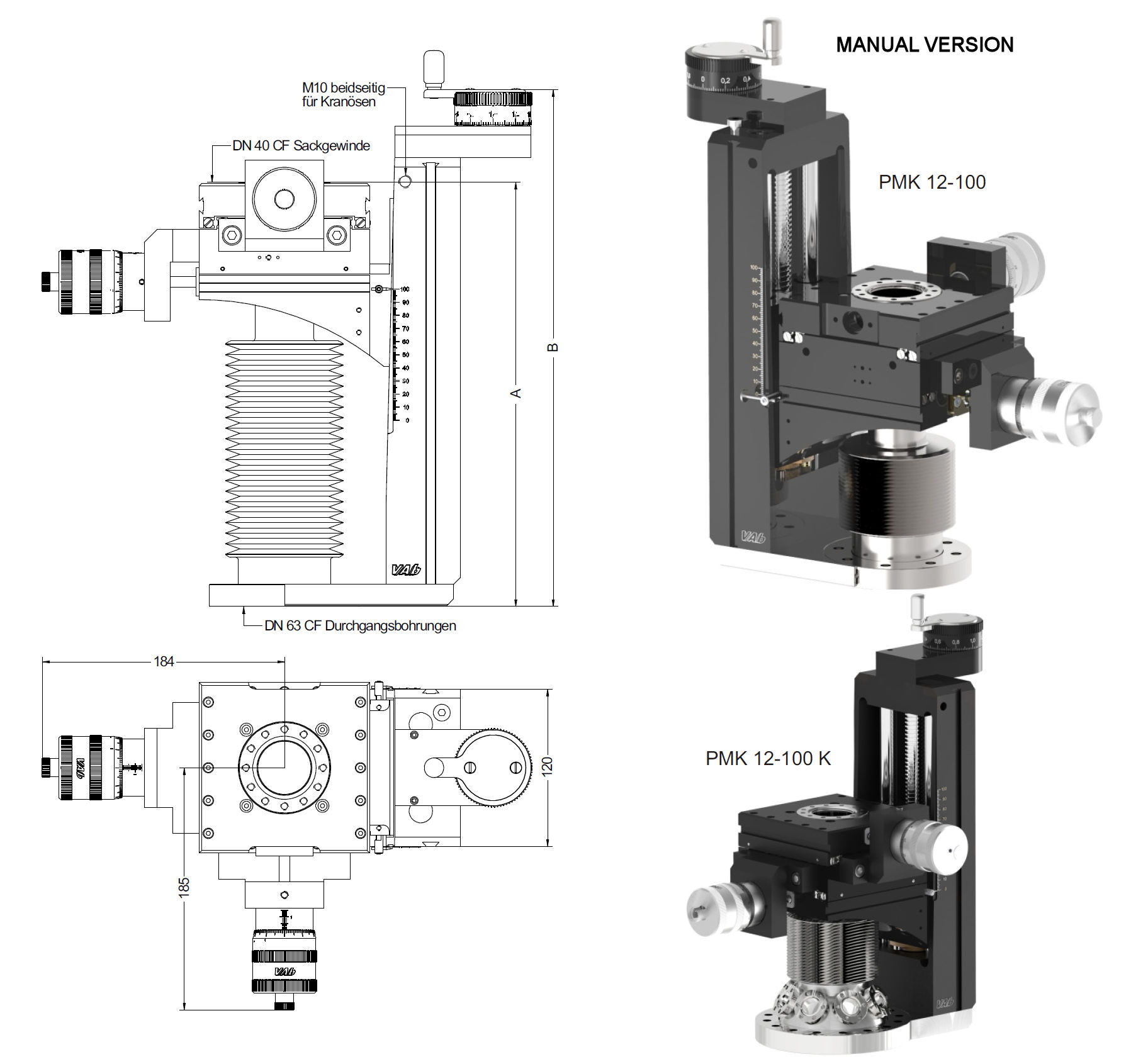

Part No.	Travel (mm)	Length A - flange-flange (mm)	Length B (mm) see drawing	Length C (mm) see drawing	Weight (kg)	Actuation Z	Actuation XY
VBPMK12-50	50	224-274	343		13.5	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-50+
Travel (mm): 50 Length A - flange-flange (mm): 224-274 Length B (mm) see drawing: 343 Length C (mm) see drawing: Weight (kg): 13.5 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-50ZS2	50	224-274		327	15.5	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-50ZS2+
Travel (mm): 50 Length A - flange-flange (mm): 224-274 Length B (mm) see drawing: Length C (mm) see drawing: 327 Weight (kg): 15.5 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-50S2	50	224-274		327	19.5	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-50S2+
Travel (mm): 50 Length A - flange-flange (mm): 224-274 Length B (mm) see drawing: Length C (mm) see drawing: 327 Weight (kg): 19.5 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-100	100	224-324	393		14.2	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-100+
Travel (mm): 100 Length A - flange-flange (mm): 224-324 Length B (mm) see drawing: 393 Length C (mm) see drawing: Weight (kg): 14.2 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-100ZS2	100	224-324		377	16.2	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-100ZS2+
Travel (mm): 100 Length A - flange-flange (mm): 224-324 Length B (mm) see drawing: Length C (mm) see drawing: 377 Weight (kg): 16.2 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-100S2	100	224-324		377	20.2	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-100S2+
Travel (mm): 100 Length A - flange-flange (mm): 224-324 Length B (mm) see drawing: Length C (mm) see drawing: 377 Weight (kg): 20.2 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-150	150	234-384	453		14.9	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-150+
Travel (mm): 150 Length A - flange-flange (mm): 234-384 Length B (mm) see drawing: 453 Length C (mm) see drawing: Weight (kg): 14.9 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-150ZS2	150	234-384		437	16.9	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-150ZS2+
Travel (mm): 150 Length A - flange-flange (mm): 234-384 Length B (mm) see drawing: Length C (mm) see drawing: 437 Weight (kg): 16.9 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-150S2	150	234-384		437	20.9	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-150S2+
Travel (mm): 150 Length A - flange-flange (mm): 234-384 Length B (mm) see drawing: Length C (mm) see drawing: 437 Weight (kg): 20.9 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-200	200	244-444	513		15.6	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-200+
Travel (mm): 200 Length A - flange-flange (mm): 244-444 Length B (mm) see drawing: 513 Length C (mm) see drawing: Weight (kg): 15.6 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-200ZS2	200	244-444		497	17.6	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-200ZS2+
Travel (mm): 200 Length A - flange-flange (mm): 244-444 Length B (mm) see drawing: Length C (mm) see drawing: 497 Weight (kg): 17.6 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-200S2	200	244-444		497	21.6	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-200S2+
Travel (mm): 200 Length A - flange-flange (mm): 244-444 Length B (mm) see drawing: Length C (mm) see drawing: 497 Weight (kg): 21.6 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-250	250	254-504	573		16.3	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-250+
Travel (mm): 250 Length A - flange-flange (mm): 254-504 Length B (mm) see drawing: 573 Length C (mm) see drawing: Weight (kg): 16.3 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-250ZS2	250	254-504		557	18.3	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-250ZS2+
Travel (mm): 250 Length A - flange-flange (mm): 254-504 Length B (mm) see drawing: Length C (mm) see drawing: 557 Weight (kg): 18.3 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-250S2	250	254-504		557	22.3	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-250S2+
Travel (mm): 250 Length A - flange-flange (mm): 254-504 Length B (mm) see drawing: Length C (mm) see drawing: 557 Weight (kg): 22.3 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-300	300	264-564	633		17.0	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-300+
Travel (mm): 300 Length A - flange-flange (mm): 264-564 Length B (mm) see drawing: 633 Length C (mm) see drawing: Weight (kg): 17.0 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-300ZS2	300	264-564		617	19.0	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-300ZS2+
Travel (mm): 300 Length A - flange-flange (mm): 264-564 Length B (mm) see drawing: Length C (mm) see drawing: 617 Weight (kg): 19.0 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-300S2	300	264-564		617	23.0	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-300S2+
Travel (mm): 300 Length A - flange-flange (mm): 264-564 Length B (mm) see drawing: Length C (mm) see drawing: 617 Weight (kg): 23.0 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-350ZS2	350	284-634		677	19.7	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-350ZS2+
Travel (mm): 350 Length A - flange-flange (mm): 284-634 Length B (mm) see drawing: Length C (mm) see drawing: 677 Weight (kg): 19.7 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-350S2	350	284-634		677	23.7	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-350S2+
Travel (mm): 350 Length A - flange-flange (mm): 284-634 Length B (mm) see drawing: Length C (mm) see drawing: 677 Weight (kg): 23.7 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-400	400	294-694	763		18.4	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-400+
Travel (mm): 400 Length A - flange-flange (mm): 294-694 Length B (mm) see drawing: 763 Length C (mm) see drawing: Weight (kg): 18.4 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-400ZS2	400	294-694		747	20.4	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-400ZS2+
Travel (mm): 400 Length A - flange-flange (mm): 294-694 Length B (mm) see drawing: Length C (mm) see drawing: 747 Weight (kg): 20.4 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-400S2	400	294-694		747	24.4	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-400S2+
Travel (mm): 400 Length A - flange-flange (mm): 294-694 Length B (mm) see drawing: Length C (mm) see drawing: 747 Weight (kg): 24.4 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-500	500	324-824	893		19.8	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-500+
Travel (mm): 500 Length A - flange-flange (mm): 324-824 Length B (mm) see drawing: 893 Length C (mm) see drawing: Weight (kg): 19.8 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-500ZS2	500	324-824		877	21.8	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-500ZS2+
Travel (mm): 500 Length A - flange-flange (mm): 324-824 Length B (mm) see drawing: Length C (mm) see drawing: 877 Weight (kg): 21.8 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-500S2	500	324-824		877	25.8	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-500S2+
Travel (mm): 500 Length A - flange-flange (mm): 324-824 Length B (mm) see drawing: Length C (mm) see drawing: 877 Weight (kg): 25.8 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMK12-600	600	354-954	1023		21.2	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-600+
Travel (mm): 600 Length A - flange-flange (mm): 354-954 Length B (mm) see drawing: 1023 Length C (mm) see drawing: Weight (kg): 21.2 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-600ZS2	600	354-954		1007	23.2	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-600ZS2+
Travel (mm): 600 Length A - flange-flange (mm): 354-954 Length B (mm) see drawing: Length C (mm) see drawing: 1007 Weight (kg): 23.2 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMK12-600S2	600	354-954		1007	27.2	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMK12-600S2+
Travel (mm): 600 Length A - flange-flange (mm): 354-954 Length B (mm) see drawing: Length C (mm) see drawing: 1007 Weight (kg): 27.2 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
