VBTXY Series Precision UHV XY Tilt Stages
Our VBTXY XY tilt stages are designed to provide continuous, calibrated adjustment of up to +/-5° of tilt between two flanges separated by a bellows. The stages are available in flange sizes from DN40CF to DN160CF. The stages are used in applications where a frequent tilt adjustment is needed and are provided with a graduated scale in each tilt axis. If a set-and-forget tilt adjustment is preferred, please see our range of port aligners.
Key Features
- Flange size DN40CF-DN160CF
- Top and bottom flanges with threaded holes in straddled orientation
- Bellows size 39-152mm
- Tilt range +/-5°
- Precision <0.1°
- UHV compatible, bakeable to 230°C
- Option for DN63CF version: base flange with through holes

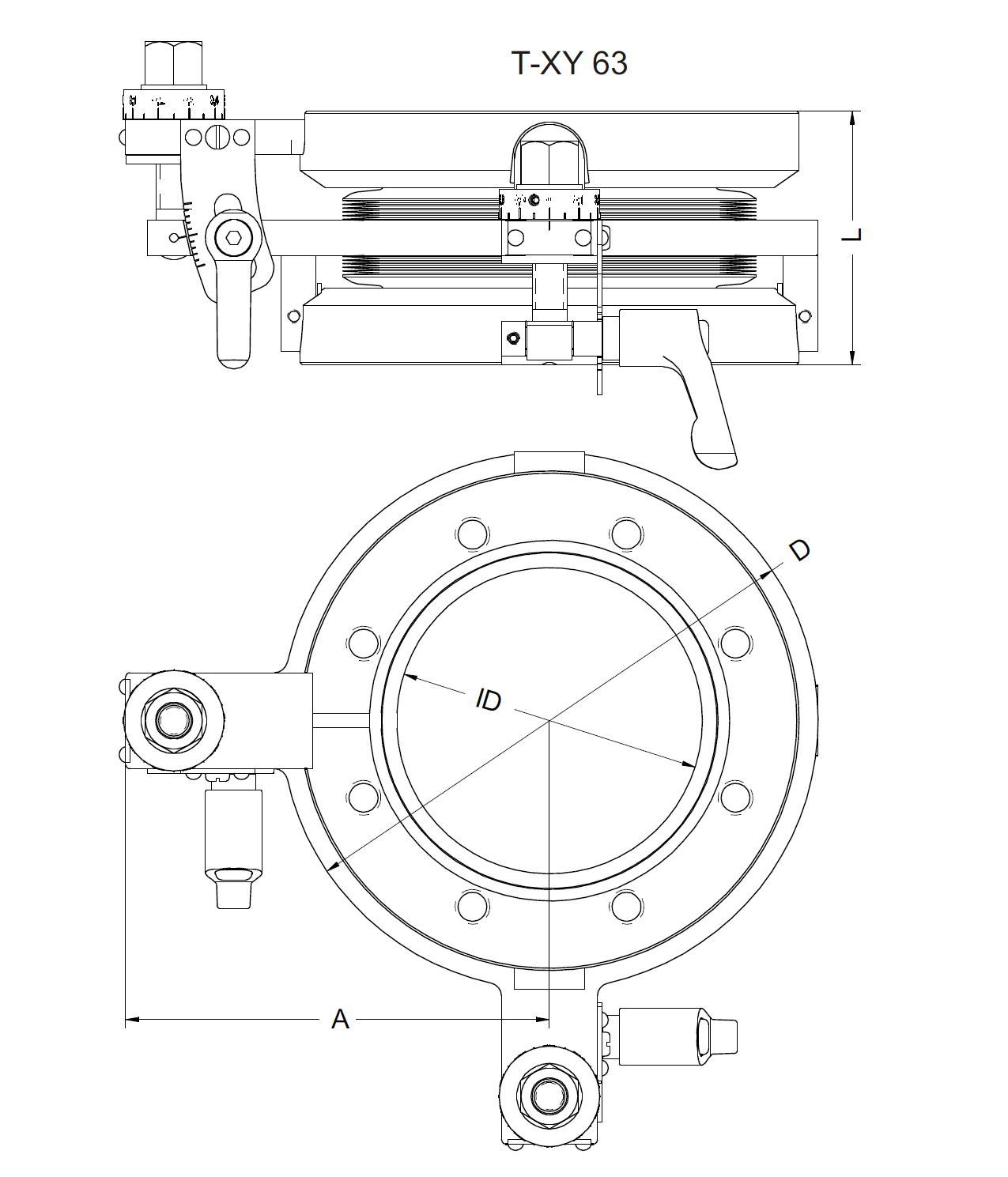

| Part No. | Flange size (top and bottom) | Length A (mm, see drawing) | Inner diameter (mm) | Flange to flange, L (mm) | |
|---|---|---|---|---|---|
| VBTXY40 | DN40CF | 64 | 39 | 39 | |
| VBTXY40 | |||||
| VBTXY63 | DN63CF | 97 | 70 | 57 | |
| VBTXY63 | |||||
| VBTXY100 | DN100CF | 126 | 102 | 64 | |
| VBTXY100 | |||||
| VBTXY160 | DN160CF | 156 | 152 | 66 | |
| VBTXY160 |
