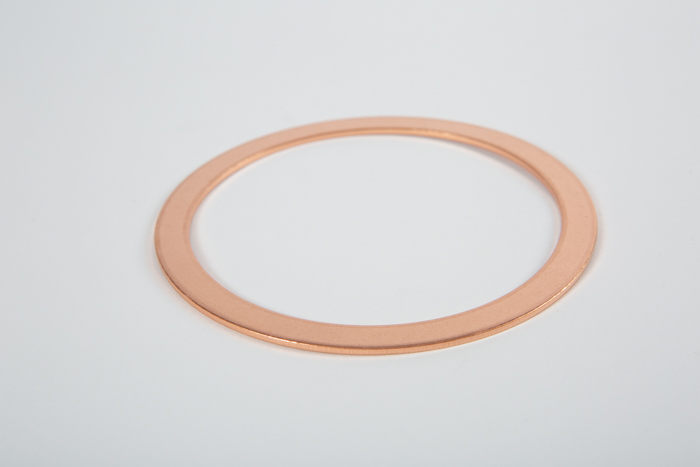

GVCG Series standard copper gaskets
These OHFC (oxygen-free) copper gaskets are the every-day choice for sealing standard flanges where no high temperature baking or special viewports are being mounted. They are the lowest cost option, and the default for many customers.
Key Features
Our gaskets are available in a variety of standard sizes starting at DN16CF.
Please contact us if your size is not listed as some larger and imperial sizes are available by special request.
| Part No. | Flange size | Flange OD (mm) | Outer diameter (mm) (+/-.1) | Inner diameter (mm) (+/-.1) | Thickness (mm) | Pack size (#gaskets) | |
|---|---|---|---|---|---|---|---|
| GVCG16 | DN16CF | 34 | 21.25 | 16.0 | 2 | 10 | |
| GVCG16 | |||||||
| GVCG40 | DN40CF | 70 | 48.15 | 36.86 | 2 | 10 | |
| GVCG40 | |||||||
| GVCG40W | DN40CF Wide | 70 | 48.15 | 39.2 | 2 | 10 | |
| GVCG40W | |||||||
| GVCG63 | DN63CF | 114 | 82.4 | 63.45 | 2 | 10 | |
| GVCG63 | |||||||
| GVCG100 | DN100CF | 152 | 120.5 | 101.7 | 2 | 10 | |
| GVCG100 | |||||||
| GVCG150 | DN150CF | 203 | 171.1 | 152.5 | 2 | 10 | |
| GVCG150 | |||||||
| GVCG200 | DN200CF | 254 | 222.0 | 203.25 | 2 | 10 | |
| GVCG200 | |||||||
| GVCG250 | DN250CF | 305 | 272.87 | 254.2 | 2 | 1 | |
| GVCG250 |
