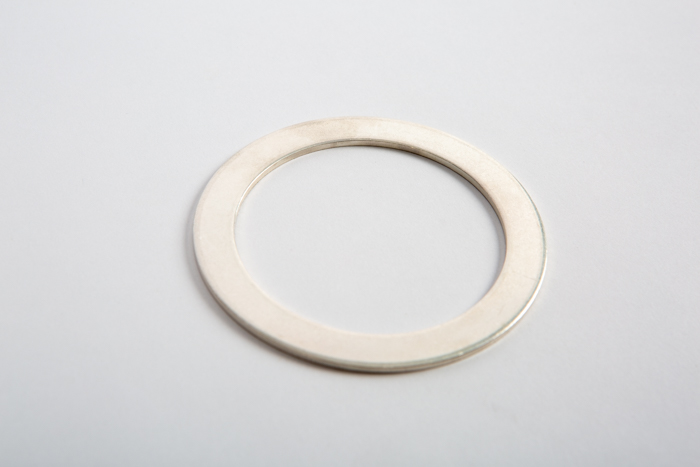

GVCGS Series silver plated copper gaskets
These OHFC (oxygen-free) copper gaskets are silver plated to prevent oxidation at high temperatures, making them ideal for systems which are frequently baked at high temperature. Oxidation of the gasket can eventually cause leakage, so the choice of silver plated gaskets, while more expensive is sometimes a price worth paying for reduced down-time and system reliability.
Key Features
Our gaskets are available in a variety of standard sizes starting at DN16CF.
Please contact us if your size is not listed as some larger and imperial sizes are available by special request.
| Part No. | Flange size | Flange OD (mm) | Outer diameter (mm) (+/-.1) | Inner diameter (mm) (+/-.1) | Thickness (mm) | Pack size (#gaskets) | |
|---|---|---|---|---|---|---|---|
| GVCGS16 | DN16CF | 34 | 21.25 | 16.0 | 2 | 5 | |
| GVCGS16 | |||||||
| GVCGS40 | DN40CF | 70 | 48.15 | 36.86 | 2 | 5 | |
| GVCGS40 | |||||||
| GVCGS40W | DN40CF Wide | 70 | 48.15 | 39.2 | 2 | 5 | |
| GVCGS40W | |||||||
| GVCGS63 | DN63CF | 114 | 82.4 | 63.45 | 2 | 5 | |
| GVCGS63 | |||||||
| GVCGS100 | DN100CF | 152 | 120.5 | 101.7 | 2 | 5 | |
| GVCGS100 | |||||||
| GVCGS150 | DN150CF | 203 | 171.1 | 152.5 | 2 | 5 | |
| GVCGS150 | |||||||
| GVCGS200 | DN200CF | 254 | 222.0 | 203.25 | 2 | 5 | |
| GVCGS200 | |||||||
| GVCGS250 | DN250CF | 305 | 272.87 | 254.2 | 2 | 1 | |
| GVCGS250 |
