Name: VBJUMEM-100 Port Aligner
Brand: VAb
SKU: VABJUMEM-100
Availability: BackOrder

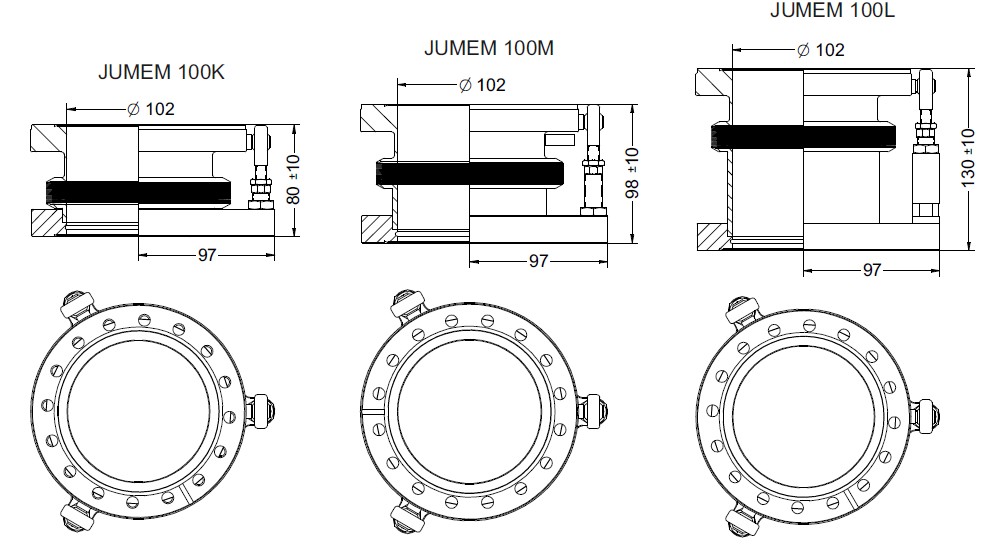

Part No.	Length (mm)	External radius (mm)	Inner diameter (mm)	Bolt hole type base flange	Bolt hole type top flange	Flange material
VBJUMEM-100K	80±10	97	102	Threaded	Through	304L	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100K+
Length (mm): 80±10 External radius (mm): 97 Inner diameter (mm): 102 Bolt hole type base flange: Threaded Bolt hole type top flange: Through Flange material: 304L Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100K-29	80±10	97	102	Threaded	Through	316LN	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100K-29+
Length (mm): 80±10 External radius (mm): 97 Inner diameter (mm): 102 Bolt hole type base flange: Threaded Bolt hole type top flange: Through Flange material: 316LN Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100M	98±10	97	102	Through	Through	304L	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100M+
Length (mm): 98±10 External radius (mm): 97 Inner diameter (mm): 102 Bolt hole type base flange: Through Bolt hole type top flange: Through Flange material: 304L Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100M-29	98±10	97	102	Through	Through	316LN	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100M-29+
Length (mm): 98±10 External radius (mm): 97 Inner diameter (mm): 102 Bolt hole type base flange: Through Bolt hole type top flange: Through Flange material: 316LN Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100L	130±10	97	102	Through	Through	304L	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100L+
Length (mm): 130±10 External radius (mm): 97 Inner diameter (mm): 102 Bolt hole type base flange: Through Bolt hole type top flange: Through Flange material: 304L Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100L-29	130±10	97	102	Through	Through	316LN	Add to quote This product is already in your quote request list. Browse the list
VBJUMEM-100L-29+
Length (mm): 130±10 External radius (mm): 97 Inner diameter (mm): 102 Bolt hole type base flange: Through Bolt hole type top flange: Through Flange material: 316LN Add to quote This product is already in your quote request list. Browse the list

VBJUMEM-100 Port Aligner

Key Features

VBJUMEM-100K

VBJUMEM-100K-29

VBJUMEM-100M

VBJUMEM-100M-29

VBJUMEM-100L

VBJUMEM-100L-29
