VBMDS2-40 Dual concentric axis transfer rod DN40CF

High quality UHV magnetically-coupled dual axis transfer rod with linear motion and two independent rotation axes. Standard travels from 300-1000mm in 100mm increments.

Key Features

Flange Size: DN40CF with through holes
In-vacuum shaft diameter (outer shaft for first rotation): 20mm
In-vacuum shaft diameter (inner shaft for second rotation): 6mm with a flat on one side
Air side support attachment: M8 threaded hole, 10mm deep
Rotation 1 and rotation 2: 0-360º, independent motion
Transferrable axial force: 50 N
Transferrable torque: 2 Nm (axis1), 1Nm (axis 2)
Maximum bakeout temperature: 230ºC (UHV compatible)
Pressure range: 1bar- 10^-11 mbar
Helium leak rate: <1×10^-10 mbar l s^-1
Options available (please ask!):
- stop ring (Part number VB-MDS-AR)
- port aligner (Part number VB-JUMEM40#)
- Transfer tool / sample holder
- attachment to remove the rotation axis and change to linear-only motion (Part number VB-MLH)
- attachment for remote operation, especially useful for longer transfer rods (Part number VB-MDF)
- X-table to provide an additional vertical or lateral movement (Part number VBX40-12)
- Stepper motor operation of both axes (increased flange size of DN100CF for this option)

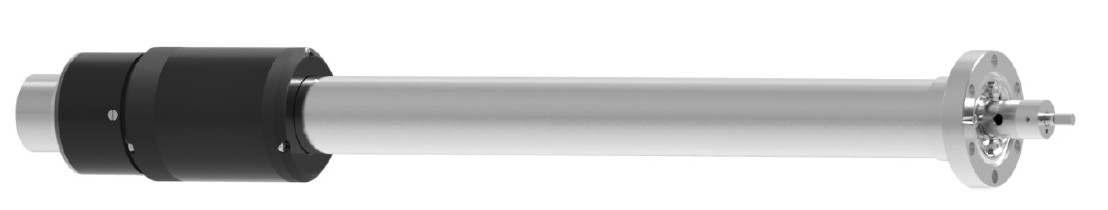

VBMDS2-40 Dual concentric axis transfer rod DN40CF

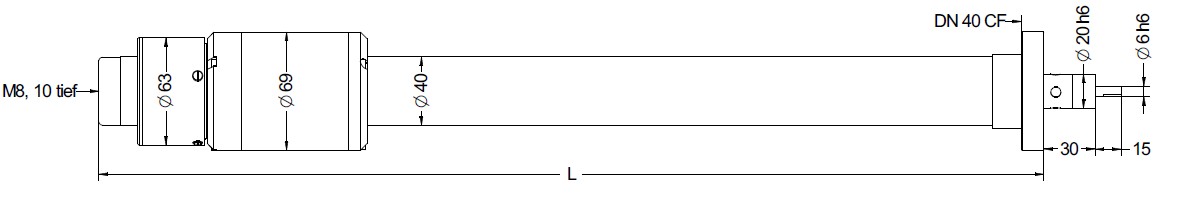

VBMDS2-40 Dual concentric axis transfer rod DN40CF - Image 2

Part No.	Stroke (mm)	Length (mm)	Weight (kg)
VBMDS2-40-300	300	556	3-8		Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-300+
Stroke (mm): 300 Length (mm): 556 Weight (kg): 3-8 Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-400	400	656	4-0	-	Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-400+
Stroke (mm): 400 Length (mm): 656 Weight (kg): 4-0 Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-500	500	756	4-2	-	Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-500+
Stroke (mm): 500 Length (mm): 756 Weight (kg): 4-2 Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-600	600	856	4-4	-	Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-600+
Stroke (mm): 600 Length (mm): 856 Weight (kg): 4-4 Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-700	700	956	4-8	-	Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-700+
Stroke (mm): 700 Length (mm): 956 Weight (kg): 4-8 Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-800	800	1056	4-8	-	Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-800+
Stroke (mm): 800 Length (mm): 1056 Weight (kg): 4-8 Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-1000	1000	1256	5-0	-	Add to quote This product is already in your quote request list. Browse the list
VBMDS2-40-1000+
Stroke (mm): 1000 Length (mm): 1256 Weight (kg): 5-0 Add to quote This product is already in your quote request list. Browse the list
