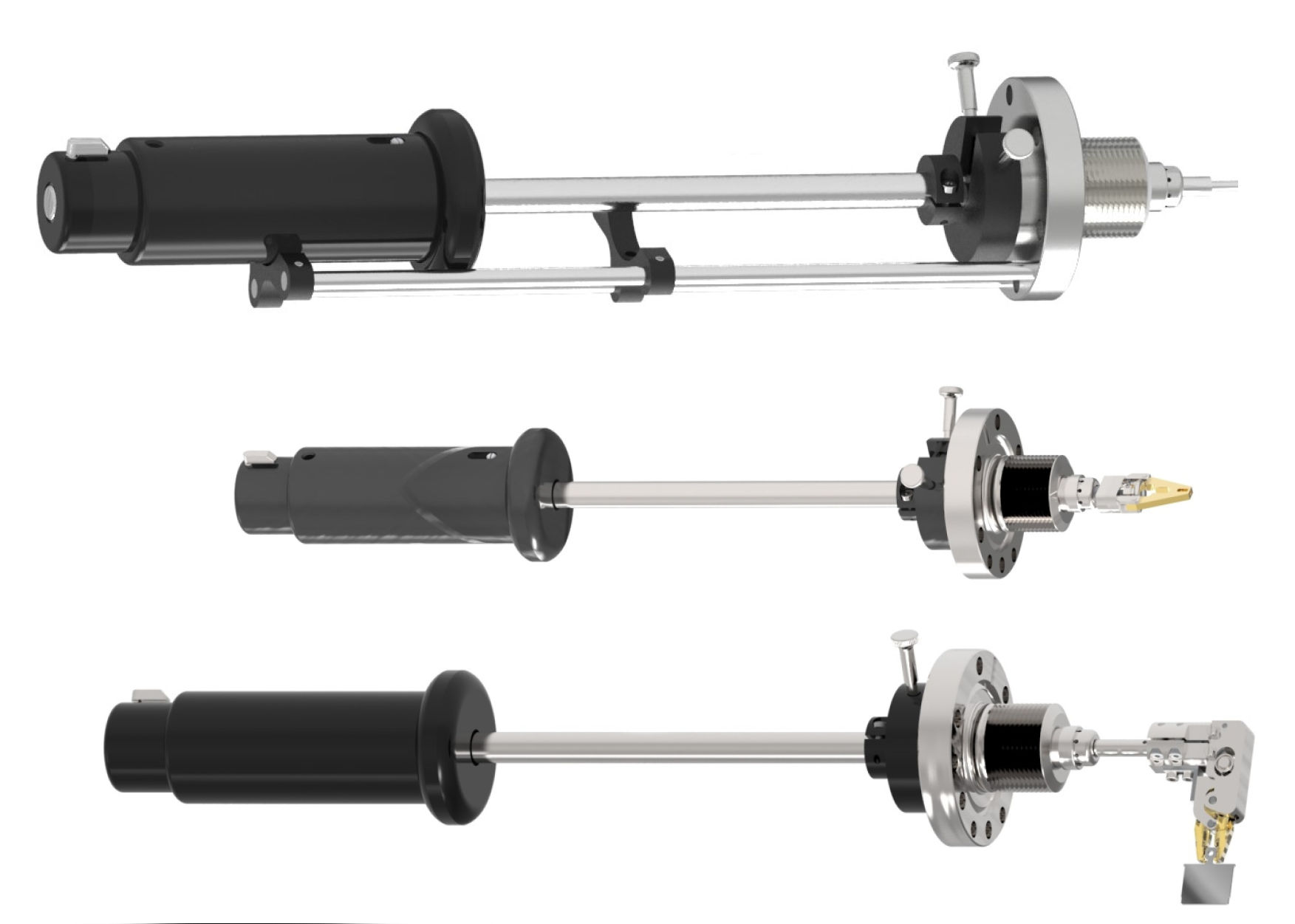

VBMDWSZ Series Magnetically-Coupled Wobble Sticks (1 rotation, 2 linear axis, optional linear or 90º pincer)

Our VBMDWSZ series wobble sticks are designed to provide linear, tilt and one rotation axis. There is an additional short travel inner linear axis designed to actuate an optional pincer tool to grab flag-style samples. These wobble sticks include a parking station and stop ring.

Key Features

DN40CF flange
Travel from 50-300mm
Inner shaft termination: 3mm diameter rod
Outer shaft termination: 6mm diameter rod
Minimum in-vacuum length 42mm without transfer tool fitted
Bellows diameter 31.5 mm
Rotation axes with range 360º
Angular range +/-22º
Transferrable torque: 0.6 Nm
Transferrable axial force: 38 N for outer and 26N for inner axis
UHV compatible, bakeout up to 230ºC
Flanges 316LN, tube and bellows 316L stainless steel
Pressure range 1 bar – 1×10^-11 mbar
UHV compatible, bakeout up to 230ºC
Parking station and stop ring included as standard

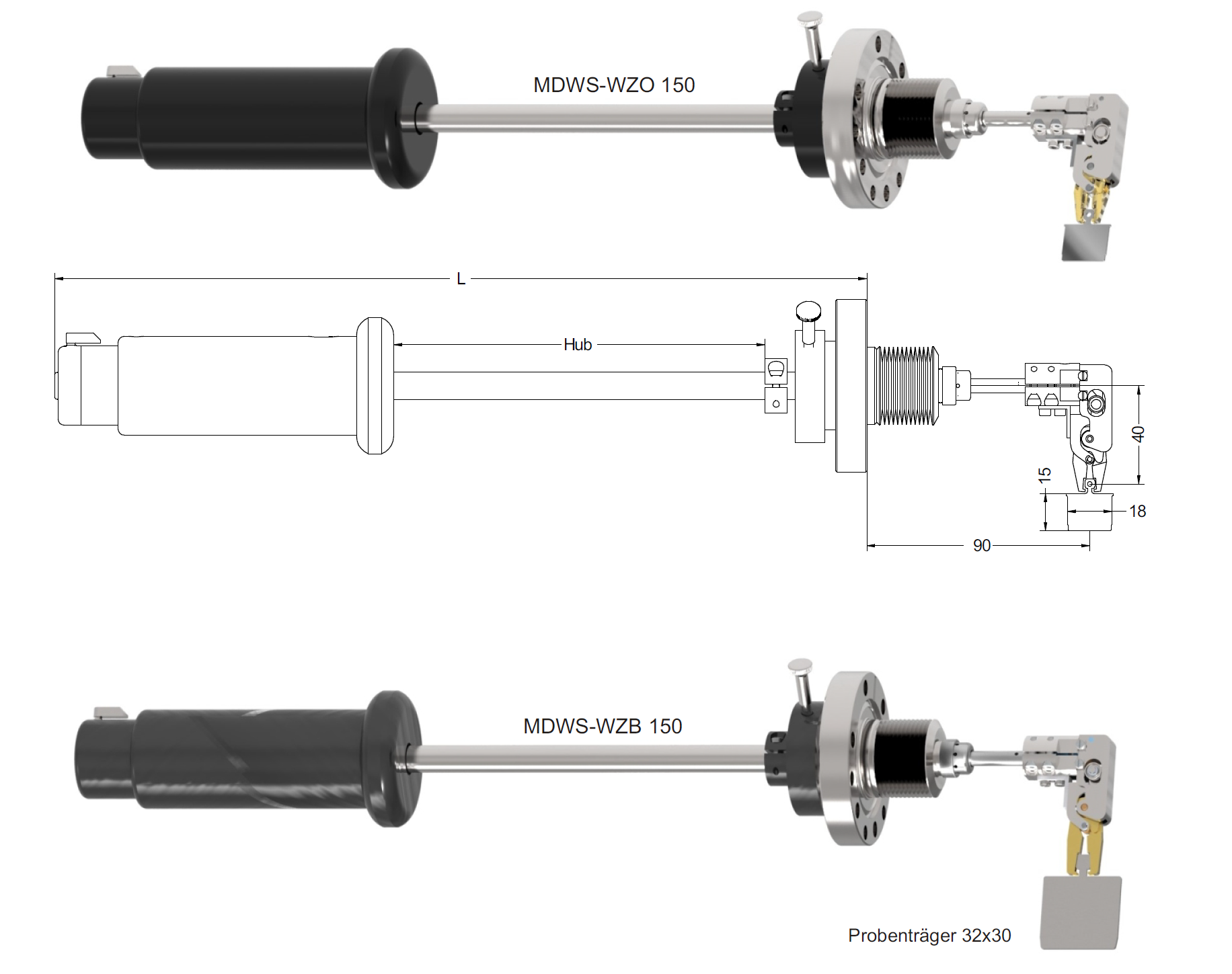

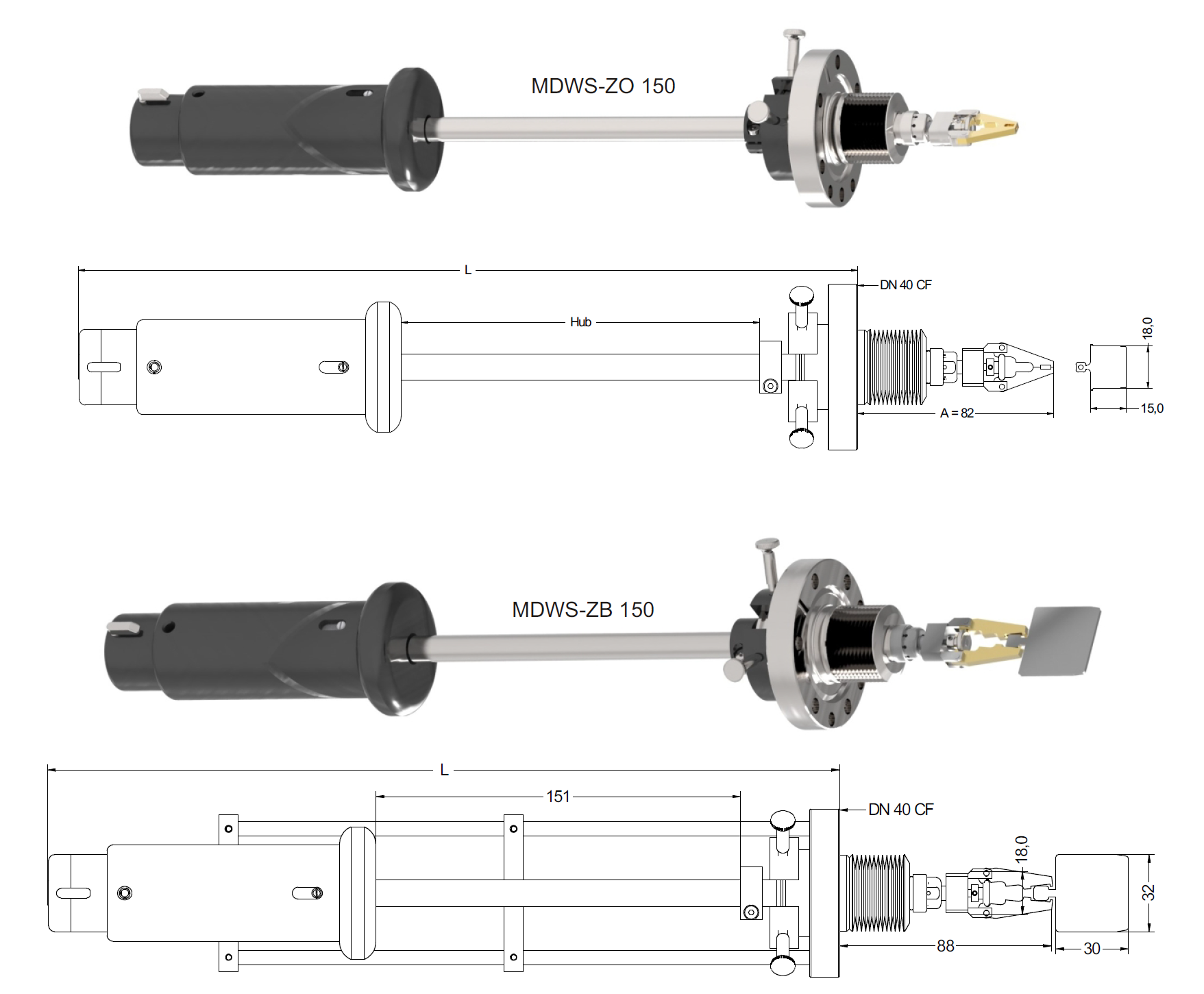

Transfer tools (pincer) optional for 2 different sample holder sizes (see gallery drawings)
90º transfer tool option
Options available on request (not included in table below, please ask!)
- Other travels on request up to 600mm
- Option for 28º angular range
- DN63CF base flange
- Custom size pincer tools

VBMDWSZ Series Magnetically-Coupled Wobble Sticks (1 rotation, 2 linear axis, optional linear or 90º pincer)

VBMDWSZ Series Magnetically-Coupled Wobble Sticks (1 rotation, 2 linear axis, optional linear or 90º pincer) - Image 2

VBMDWSZ Series Magnetically-Coupled Wobble Sticks (1 rotation, 2 linear axis, optional linear or 90º pincer) - Image 3

VBMDWSZ Series Magnetically-Coupled Wobble Sticks (1 rotation, 2 linear axis, optional linear or 90º pincer) - Image 4

Part No.	Linear axis travel (mm)	Transfer tool	Dimension L (mm) see drawing	Weight (kg)
VBMDWSZ-50	50	None	228	0.98	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-50+
Linear axis travel (mm): 50 Transfer tool: None Dimension L (mm) see drawing: 228 Weight (kg): 0.98 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-50	50	Pincer for 15x18mm sample plates (ZO)	228	1.01	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-50+
Linear axis travel (mm): 50 Transfer tool: Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 228 Weight (kg): 1.01 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-50	50	Pincer for 30x32mm sample plates (ZB)	228	1.02	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-50+
Linear axis travel (mm): 50 Transfer tool: Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 228 Weight (kg): 1.02 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-50	50	90º Pincer for 15x18mm sample plates (ZO)	228	1.05	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-50+
Linear axis travel (mm): 50 Transfer tool: 90º Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 228 Weight (kg): 1.05 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-50	50	90º Pincer for 30x32mm sample plates (ZB)	228	1.06	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-50+
Linear axis travel (mm): 50 Transfer tool: 90º Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 228 Weight (kg): 1.06 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-100	100	None	278	0.99	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-100+
Linear axis travel (mm): 100 Transfer tool: None Dimension L (mm) see drawing: 278 Weight (kg): 0.99 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-100	100	Pincer for 15x18mm sample plates (ZO)	278	1.02	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-100+
Linear axis travel (mm): 100 Transfer tool: Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 278 Weight (kg): 1.02 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-100	100	Pincer for 30x32mm sample plates (ZB)	278	1.03	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-100+
Linear axis travel (mm): 100 Transfer tool: Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 278 Weight (kg): 1.03 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-100	100	90º Pincer for 15x18mm sample plates (ZO)	278	1.06	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-100+
Linear axis travel (mm): 100 Transfer tool: 90º Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 278 Weight (kg): 1.06 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-100	100	90º Pincer for 30x32mm sample plates (ZB)	278	1.07	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-100+
Linear axis travel (mm): 100 Transfer tool: 90º Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 278 Weight (kg): 1.07 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-150	150	None	328	1.00	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-150+
Linear axis travel (mm): 150 Transfer tool: None Dimension L (mm) see drawing: 328 Weight (kg): 1.00 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-150	150	Pincer for 15x18mm sample plates (ZO)	328	1.03	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-150+
Linear axis travel (mm): 150 Transfer tool: Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 328 Weight (kg): 1.03 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-150	150	Pincer for 30x32mm sample plates (ZB)	328	1.04	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-150+
Linear axis travel (mm): 150 Transfer tool: Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 328 Weight (kg): 1.04 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-150	150	90º Pincer for 15x18mm sample plates (ZO)	328	1.07	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-150+
Linear axis travel (mm): 150 Transfer tool: 90º Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 328 Weight (kg): 1.07 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-150	150	90º Pincer for 30x32mm sample plates (ZB)	328	1.08	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-150+
Linear axis travel (mm): 150 Transfer tool: 90º Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 328 Weight (kg): 1.08 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-200	200	None	378	1.01	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-200+
Linear axis travel (mm): 200 Transfer tool: None Dimension L (mm) see drawing: 378 Weight (kg): 1.01 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-200	200	Pincer for 15x18mm sample plates (ZO)	378	1.04	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-200+
Linear axis travel (mm): 200 Transfer tool: Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 378 Weight (kg): 1.04 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-200	200	Pincer for 30x32mm sample plates (ZB)	378	1.05	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-200+
Linear axis travel (mm): 200 Transfer tool: Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 378 Weight (kg): 1.05 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-200	200	90º Pincer for 15x18mm sample plates (ZO)	378	1.08	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-200+
Linear axis travel (mm): 200 Transfer tool: 90º Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 378 Weight (kg): 1.08 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-200	200	90º Pincer for 30x32mm sample plates (ZB)	378	1.09	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-200+
Linear axis travel (mm): 200 Transfer tool: 90º Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 378 Weight (kg): 1.09 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-250	250	None	428	1.02	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-250+
Linear axis travel (mm): 250 Transfer tool: None Dimension L (mm) see drawing: 428 Weight (kg): 1.02 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-250	250	Pincer for 15x18mm sample plates (ZO)	428	1.05	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-250+
Linear axis travel (mm): 250 Transfer tool: Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 428 Weight (kg): 1.05 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-250	250	Pincer for 30x32mm sample plates (ZB)	428	1.06	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-250+
Linear axis travel (mm): 250 Transfer tool: Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 428 Weight (kg): 1.06 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-250	250	90º Pincer for 15x18mm sample plates (ZO)	428	1.09	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-250+
Linear axis travel (mm): 250 Transfer tool: 90º Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 428 Weight (kg): 1.09 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-250	250	90º Pincer for 30x32mm sample plates (ZB)	428	1.10	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZB-250+
Linear axis travel (mm): 250 Transfer tool: 90º Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 428 Weight (kg): 1.10 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-300	300	None	478	1.03	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZ-300+
Linear axis travel (mm): 300 Transfer tool: None Dimension L (mm) see drawing: 478 Weight (kg): 1.03 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-300	300	Pincer for 15x18mm sample plates (ZO)	478	1.06	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZO-300+
Linear axis travel (mm): 300 Transfer tool: Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 478 Weight (kg): 1.06 Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-300	300	Pincer for 30x32mm sample plates (ZB)	478	1.07	Add to quote This product is already in your quote request list. Browse the list
VBMDWSZB-300+
Linear axis travel (mm): 300 Transfer tool: Pincer for 30x32mm sample plates (ZB) Dimension L (mm) see drawing: 478 Weight (kg): 1.07 Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-300	300	90º Pincer for 15x18mm sample plates (ZO)	478	1.10	Add to quote This product is already in your quote request list. Browse the list
VBMDWSWZO-300+
Linear axis travel (mm): 300 Transfer tool: 90º Pincer for 15x18mm sample plates (ZO) Dimension L (mm) see drawing: 478 Weight (kg): 1.10 Add to quote This product is already in your quote request list. Browse the list
