VBPMAX25 Series Dual Bellows UHV XYZ Manipulators

The PMAX25 series XYZ manipulators are available as standard with a DN100CF base flange and a DN63CF moving flange. They offer +/-25mm travel in XY and up to 600mm in Z. The smaller Z bellows has an internal diameter of 66mm and comes as standard without a support bearing. The larger inner and outer diameter compared to the PM series mean that larger inserts are possible The manipulator has a maximum 30kg load on the z axis.

Key Features

Z travel from 50-600mm
X/Y travel +/-25mm vector sum
Z Bellows inner diameter 66mm
XY Bellows inner diameter 102mm
Micrometer scales on all axes for repeatable positioning
Resolution: 0.01mm manual, 0.001mm motorised
DN100CF base flange with threaded holes
DN63CF top flange with through holes
UHV compatible, bakeout up to 230ºC (motors have to be removed if motorised)
Flanges 316LN, tube and bellows 316L stainless steel
Pressure range 1 bar – 1×10^-11 mbar
Maximum load on Z axis 30kg
One positionable mechanical limit for the Z axis to limit the travel within its range
Options available (not listed in the table below, please ask):
- DN63CF top flange with threaded holes
- DN160CF or DN200CF base flange
- Alternative bolt hole orientation on base flange
- Support bearing to fit the insert diameter
- motorisation of Z axis with 2 phase stepper motor PK 299-E4.5B (Oriental) NEMA 34 / 6 Nm
- motorisation of XY axes with 2 phase stepper motor PKP268MD28B (Oriental) NEMA 23 / 2 Nm
- Linear encoder, motor encoder
- Limit switches to provide feedback if an axis reaches either end of its travel

VBPMAX25 Series Dual Bellows UHV XYZ Manipulators

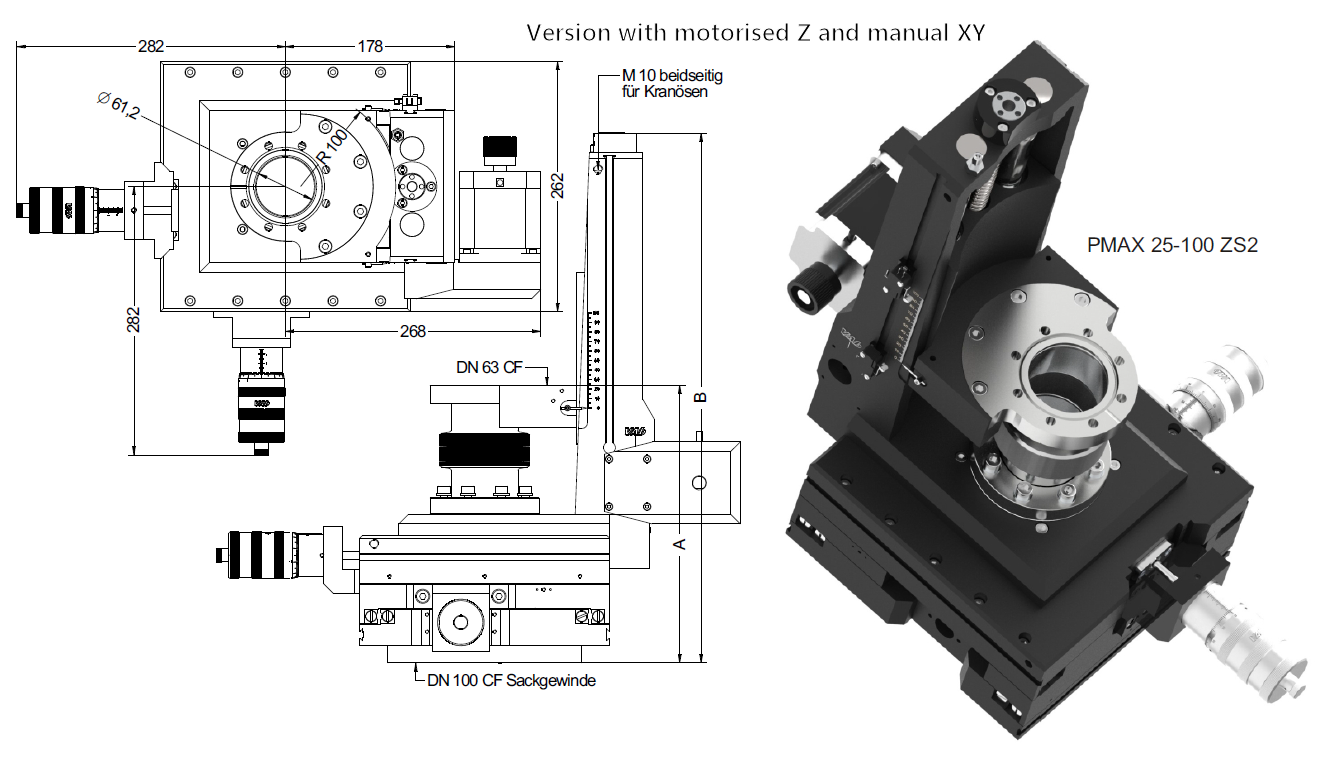

VBPMAX25 Series Dual Bellows UHV XYZ Manipulators - Image 2

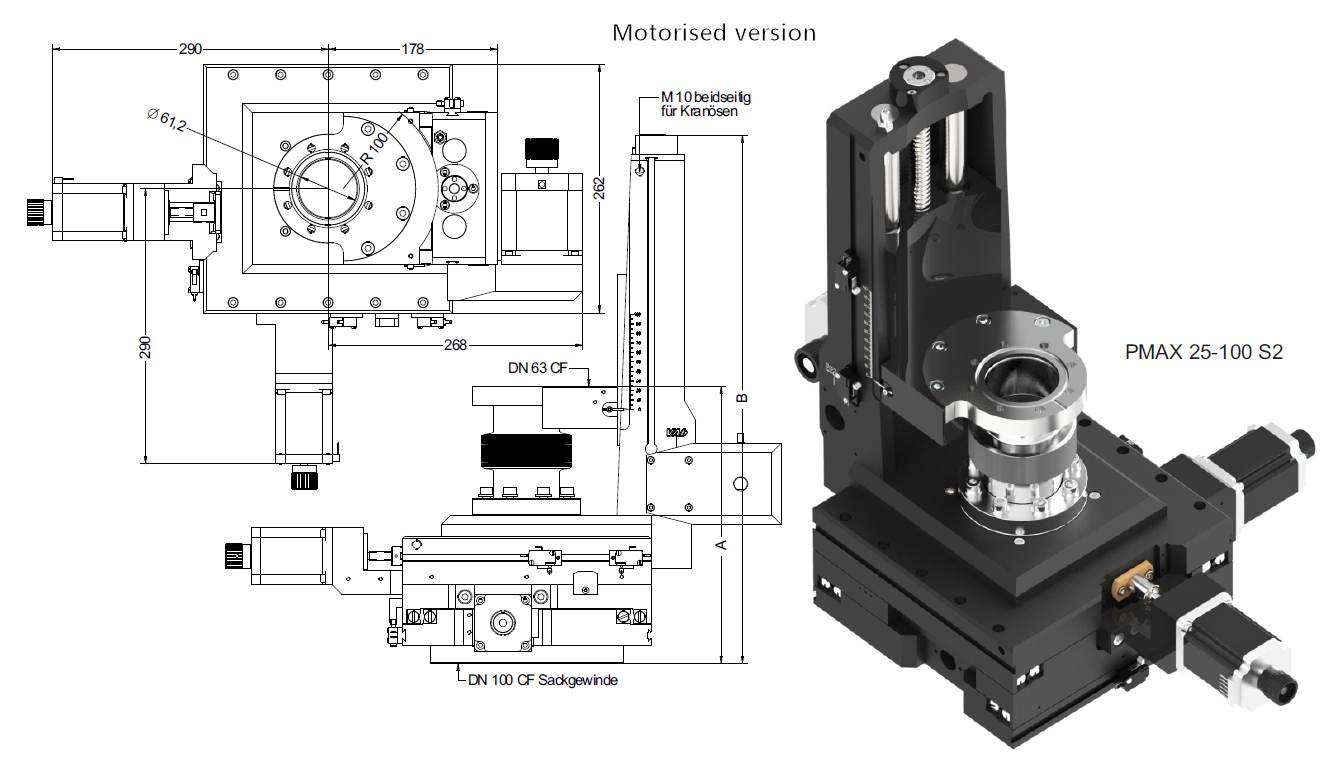

VBPMAX25 Series Dual Bellows UHV XYZ Manipulators - Image 3

VBPMAX25 Series Dual Bellows UHV XYZ Manipulators - Image 4

Part No.	Travel (mm)	Length A - flange-flange (mm)	Length B (mm) see drawing	Weight (kg)	Actuation Z	Actuation XY
VBPMAX25-50	50	294-344	548	38.4	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-50+
Travel (mm): 50 Length A - flange-flange (mm): 294-344 Length B (mm) see drawing: 548 Weight (kg): 38.4 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-50ZS2	50	294-344	548	38.9	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-50ZS2+
Travel (mm): 50 Length A - flange-flange (mm): 294-344 Length B (mm) see drawing: 548 Weight (kg): 38.9 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-50S2	50	294-344	548	45.7	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-50S2+
Travel (mm): 50 Length A - flange-flange (mm): 294-344 Length B (mm) see drawing: 548 Weight (kg): 45.7 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-100	100	294-394	598	39.0	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-100+
Travel (mm): 100 Length A - flange-flange (mm): 294-394 Length B (mm) see drawing: 598 Weight (kg): 39.0 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-100ZS2	100	294-394	598	44.5	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-100ZS2+
Travel (mm): 100 Length A - flange-flange (mm): 294-394 Length B (mm) see drawing: 598 Weight (kg): 44.5 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-100S2	100	294-394	598	46.3	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-100S2+
Travel (mm): 100 Length A - flange-flange (mm): 294-394 Length B (mm) see drawing: 598 Weight (kg): 46.3 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-150	150	294-444	648	39.6	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-150+
Travel (mm): 150 Length A - flange-flange (mm): 294-444 Length B (mm) see drawing: 648 Weight (kg): 39.6 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-150ZS2	150	294-444	648	45.1	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-150ZS2+
Travel (mm): 150 Length A - flange-flange (mm): 294-444 Length B (mm) see drawing: 648 Weight (kg): 45.1 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-150S2	150	294-444	648	46.9	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-150S2+
Travel (mm): 150 Length A - flange-flange (mm): 294-444 Length B (mm) see drawing: 648 Weight (kg): 46.9 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-200	200	294-494	698	40.2	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-200+
Travel (mm): 200 Length A - flange-flange (mm): 294-494 Length B (mm) see drawing: 698 Weight (kg): 40.2 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-200ZS2	200	294-494	698	45.7	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-200ZS2+
Travel (mm): 200 Length A - flange-flange (mm): 294-494 Length B (mm) see drawing: 698 Weight (kg): 45.7 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-200S2	200	294-494	698	47.5	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-200S2+
Travel (mm): 200 Length A - flange-flange (mm): 294-494 Length B (mm) see drawing: 698 Weight (kg): 47.5 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-250	250	294-544	748	40.8	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-250+
Travel (mm): 250 Length A - flange-flange (mm): 294-544 Length B (mm) see drawing: 748 Weight (kg): 40.8 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-250ZS2	250	294-544	748	46.3	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-250ZS2+
Travel (mm): 250 Length A - flange-flange (mm): 294-544 Length B (mm) see drawing: 748 Weight (kg): 46.3 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-250S2	250	294-544	748	48.1	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-250S2+
Travel (mm): 250 Length A - flange-flange (mm): 294-544 Length B (mm) see drawing: 748 Weight (kg): 48.1 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-300	300	294-594	798	41.4	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-300+
Travel (mm): 300 Length A - flange-flange (mm): 294-594 Length B (mm) see drawing: 798 Weight (kg): 41.4 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-300ZS2	300	294-594	798	46.9	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-300ZS2+
Travel (mm): 300 Length A - flange-flange (mm): 294-594 Length B (mm) see drawing: 798 Weight (kg): 46.9 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-300S2	300	294-594	798	48.7	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-300S2+
Travel (mm): 300 Length A - flange-flange (mm): 294-594 Length B (mm) see drawing: 798 Weight (kg): 48.7 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-350	350	344-694	903	42.0	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-350+
Travel (mm): 350 Length A - flange-flange (mm): 344-694 Length B (mm) see drawing: 903 Weight (kg): 42.0 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-350ZS2	350	344-694	903	47.5	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-350ZS2+
Travel (mm): 350 Length A - flange-flange (mm): 344-694 Length B (mm) see drawing: 903 Weight (kg): 47.5 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-350S2	350	344-694	903	49.3	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-350S2+
Travel (mm): 350 Length A - flange-flange (mm): 344-694 Length B (mm) see drawing: 903 Weight (kg): 49.3 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-400	400	344-744	953	42.6	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-400+
Travel (mm): 400 Length A - flange-flange (mm): 344-744 Length B (mm) see drawing: 953 Weight (kg): 42.6 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-400ZS2	400	344-744	953	42.1	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-400ZS2+
Travel (mm): 400 Length A - flange-flange (mm): 344-744 Length B (mm) see drawing: 953 Weight (kg): 42.1 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-400S2	400	344-744	953	49.9	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-400S2+
Travel (mm): 400 Length A - flange-flange (mm): 344-744 Length B (mm) see drawing: 953 Weight (kg): 49.9 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-450	450	344-794	1003	43.2	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-450+
Travel (mm): 450 Length A - flange-flange (mm): 344-794 Length B (mm) see drawing: 1003 Weight (kg): 43.2 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-450ZS2	450	344-794	1003	42.7	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-450ZS2+
Travel (mm): 450 Length A - flange-flange (mm): 344-794 Length B (mm) see drawing: 1003 Weight (kg): 42.7 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-450S2	450	344-794	1003	50.5	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-450S2+
Travel (mm): 450 Length A - flange-flange (mm): 344-794 Length B (mm) see drawing: 1003 Weight (kg): 50.5 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-500	500	354-854	1053	43.8	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-500+
Travel (mm): 500 Length A - flange-flange (mm): 354-854 Length B (mm) see drawing: 1053 Weight (kg): 43.8 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-500ZS2	500	354-854	1053	43.3	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-500ZS2+
Travel (mm): 500 Length A - flange-flange (mm): 354-854 Length B (mm) see drawing: 1053 Weight (kg): 43.3 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-500S2	500	354-854	1053	51.1	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-500S2+
Travel (mm): 500 Length A - flange-flange (mm): 354-854 Length B (mm) see drawing: 1053 Weight (kg): 51.1 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-550	550	364-914	1113	44.4	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-550+
Travel (mm): 550 Length A - flange-flange (mm): 364-914 Length B (mm) see drawing: 1113 Weight (kg): 44.4 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-550ZS2	550	364-914	1113	43.9	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-550ZS2+
Travel (mm): 550 Length A - flange-flange (mm): 364-914 Length B (mm) see drawing: 1113 Weight (kg): 43.9 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-550S2	550	364-914	1113	51.7	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-550S2+
Travel (mm): 550 Length A - flange-flange (mm): 364-914 Length B (mm) see drawing: 1113 Weight (kg): 51.7 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-600	600	374-924	1173	45.0	Manual	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-600+
Travel (mm): 600 Length A - flange-flange (mm): 374-924 Length B (mm) see drawing: 1173 Weight (kg): 45.0 Actuation Z: Manual Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-600ZS2	600	374-924	1173	44.5	Motorised	Manual	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-600ZS2+
Travel (mm): 600 Length A - flange-flange (mm): 374-924 Length B (mm) see drawing: 1173 Weight (kg): 44.5 Actuation Z: Motorised Actuation XY: Manual Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-600S2	600	374-924	1173	52.3	Motorised	Motorised	Add to quote This product is already in your quote request list. Browse the list
VBPMAX25-600S2+
Travel (mm): 600 Length A - flange-flange (mm): 374-924 Length B (mm) see drawing: 1173 Weight (kg): 52.3 Actuation Z: Motorised Actuation XY: Motorised Add to quote This product is already in your quote request list. Browse the list
