VBSHCF K Series Standard Viewport Shutters
Simple shutter with a manually operated single flap opening in a wide range of sizes
Key Features
- Flange sizes available from DN40CF-DN160CF
- Bakeout temperature up to 230ºC
- Flange material 304L stainless steel (316LN by special request)
- Manually operated (stepper motor or pneumatic by special request)
- Optional limit (position feedback) switches with motor or pneumatic options.

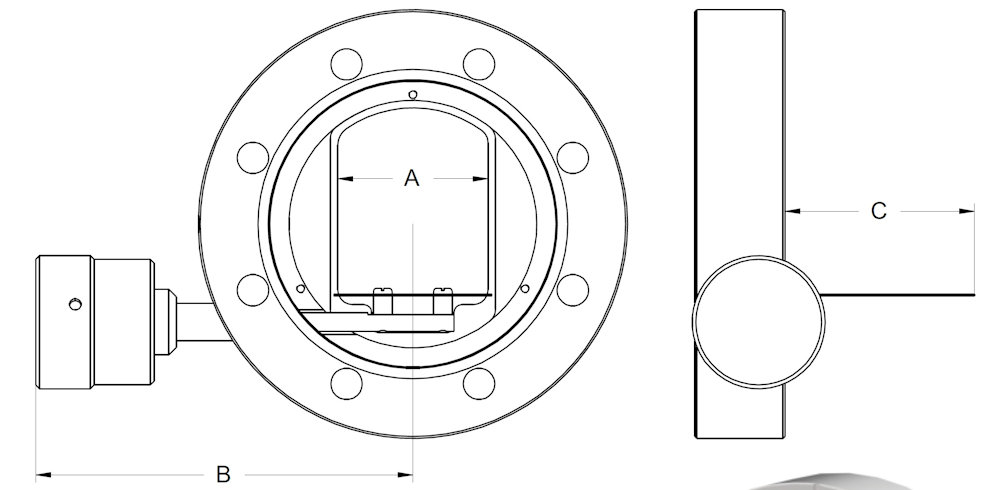

| Part No. | Shutter width A (mm) | Drive length from centre B (mm) | Shutter length in vacuum C (mm) | Flange thickness (mm) | |
|---|---|---|---|---|---|
| SHCF40K | 30.5 | 80 | 27 | 18 | |
| SHCF40K | |||||
| SHCF63K | 40 | 96 | 50.5 | 24 | |
| SHCF63K | |||||
| SHCF100K | 60 | 116 | 86 | 24 | |
| SHCF100K | |||||
| SHCF160K | 100 | 141 | 119.5 | 24 | |
| SHCF160K |
