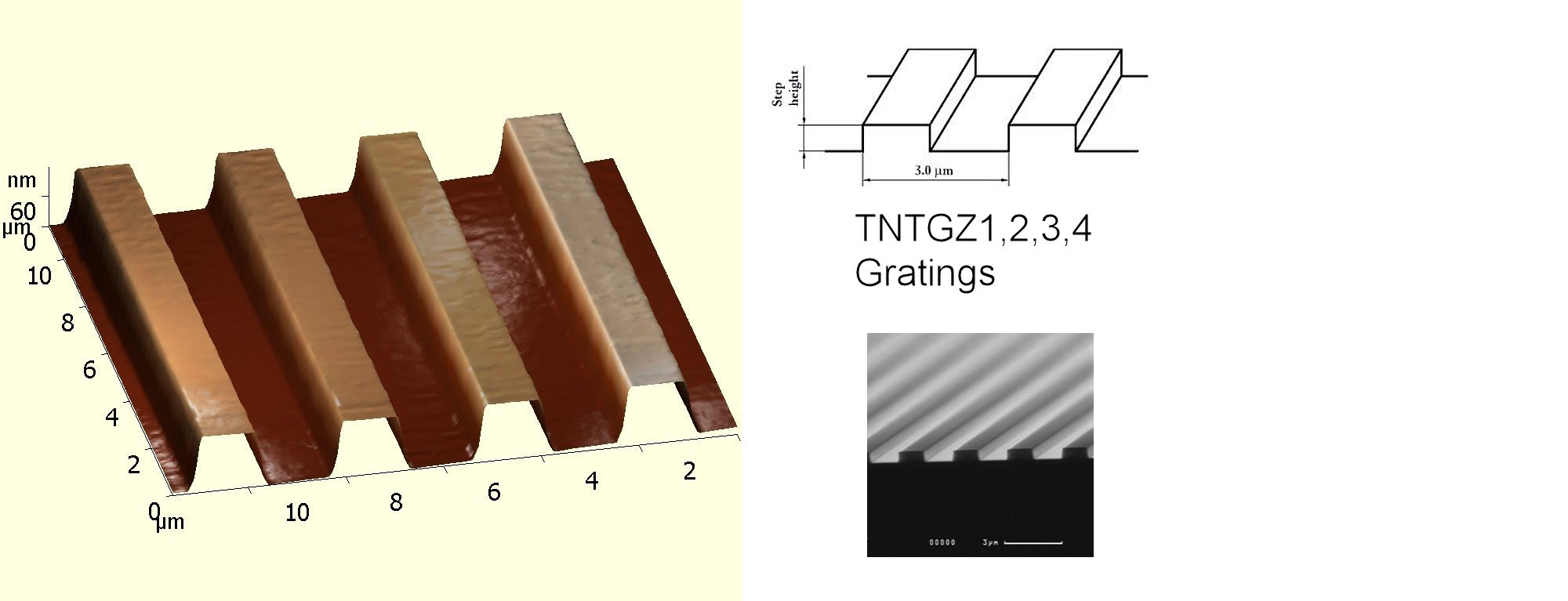

| TNTGZ1 | Square lines | 3 +/-0.05 | | 20 +/-1.5nm | | | Yes | | Yes | |
This product is already in your quote request list.
|
| TNTGZ1+ |
Pattern type: Square lines X period (um): 3 +/-0.05 Y period (um: Z Height: 20 +/-1.5nm X OR Y calibration: X AND Y calibration: Z calibration: Yes Tip shape / sharpness estimation: Non-linearity: Yes Edge angle:
This product is already in your quote request list.
|
| TNTGZ2 | Square lines | 3 +/-0.05 | | 110+/-2nm | | | Yes | | Yes | |
This product is already in your quote request list.
|
| TNTGZ2+ |
Pattern type: Square lines X period (um): 3 +/-0.05 Y period (um: Z Height: 110+/-2nm X OR Y calibration: X AND Y calibration: Z calibration: Yes Tip shape / sharpness estimation: Non-linearity: Yes Edge angle:
This product is already in your quote request list.
|
| TNTGZ3 | Square lines | 3 +/-0.05 | | 520 +/-3nm | | | Yes | | Yes | |
This product is already in your quote request list.
|
| TNTGZ3+ |
Pattern type: Square lines X period (um): 3 +/-0.05 Y period (um: Z Height: 520 +/-3nm X OR Y calibration: X AND Y calibration: Z calibration: Yes Tip shape / sharpness estimation: Non-linearity: Yes Edge angle:
This product is already in your quote request list.
|
| TNTGZ4 | Square lines | 3 +/-0.05 | | 1517 +/-20nm | | | Yes | | Yes | |
This product is already in your quote request list.
|
| TNTGZ4+ |
Pattern type: Square lines X period (um): 3 +/-0.05 Y period (um: Z Height: 1517 +/-20nm X OR Y calibration: X AND Y calibration: Z calibration: Yes Tip shape / sharpness estimation: Non-linearity: Yes Edge angle:
This product is already in your quote request list.
|

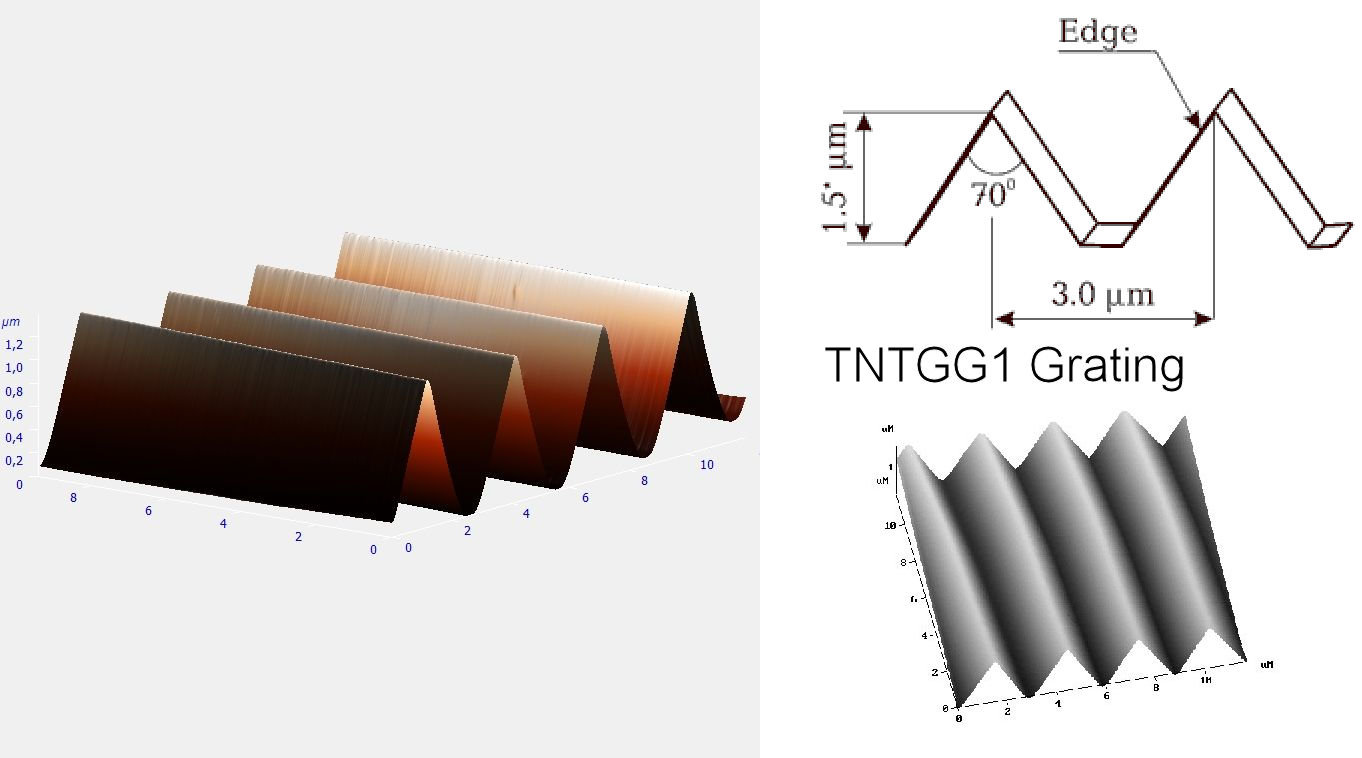

| TNTGG1 | Triangular lines | 3 +/-0.05 | | 1.5um | Yes | | | Yes | Yes | 70º |
This product is already in your quote request list.
|
| TNTGG1+ |
Pattern type: Triangular lines X period (um): 3 +/-0.05 Y period (um: Z Height: 1.5um X OR Y calibration: Yes X AND Y calibration: Z calibration: Tip shape / sharpness estimation: Yes Non-linearity: Yes Edge angle: 70º
This product is already in your quote request list.
|
| TNTGX1 | 2D array square blocks | 3 +/-0.05 | 3 +/-0.05 | ~0.6um | | Yes | | Yes | Yes | |
This product is already in your quote request list.
|
| TNTGX1+ |
Pattern type: 2D array square blocks X period (um): 3 +/-0.05 Y period (um: 3 +/-0.05 Z Height: ~0.6um X OR Y calibration: X AND Y calibration: Yes Z calibration: Tip shape / sharpness estimation: Yes Non-linearity: Yes Edge angle:
This product is already in your quote request list.
|
| TNTGQ1 | 2D array square blocks | 3 +/-0.05 | 3 +/-0.05 | 20 +/-1.5nm | | Yes | Yes | | Yes | |
This product is already in your quote request list.
|
| TNTGQ1+ |
Pattern type: 2D array square blocks X period (um): 3 +/-0.05 Y period (um: 3 +/-0.05 Z Height: 20 +/-1.5nm X OR Y calibration: X AND Y calibration: Yes Z calibration: Yes Tip shape / sharpness estimation: Non-linearity: Yes Edge angle:
This product is already in your quote request list.
|
| TNTGT1 | 2D array of sharp tips | 3 +/-0.05 | 3 +/-0.05 | 0.3-0.5 um | | | | Yes | | |
This product is already in your quote request list.
|
| TNTGT1+ |
Pattern type: 2D array of sharp tips X period (um): 3 +/-0.05 Y period (um: 3 +/-0.05 Z Height: 0.3-0.5 um X OR Y calibration: X AND Y calibration: Z calibration: Tip shape / sharpness estimation: Yes Non-linearity: Edge angle:
This product is already in your quote request list.
|
| TNTGL1 | 3 arrays/3 periods: Lines, Pillars Circles | 6,10,20 @ 2% accuracy | 6,10,20 @ 2% accuracy | 168 +/-8nm | | Yes | Yes | Yes | Yes | |
This product is already in your quote request list.
|
| TNTGL1+ |
Pattern type: 3 arrays/3 periods: Lines, Pillars Circles X period (um): 6,10,20 @ 2% accuracy Y period (um: 6,10,20 @ 2% accuracy Z Height: 168 +/-8nm X OR Y calibration: X AND Y calibration: Yes Z calibration: Yes Tip shape / sharpness estimation: Yes Non-linearity: Yes Edge angle:
This product is already in your quote request list.
|
